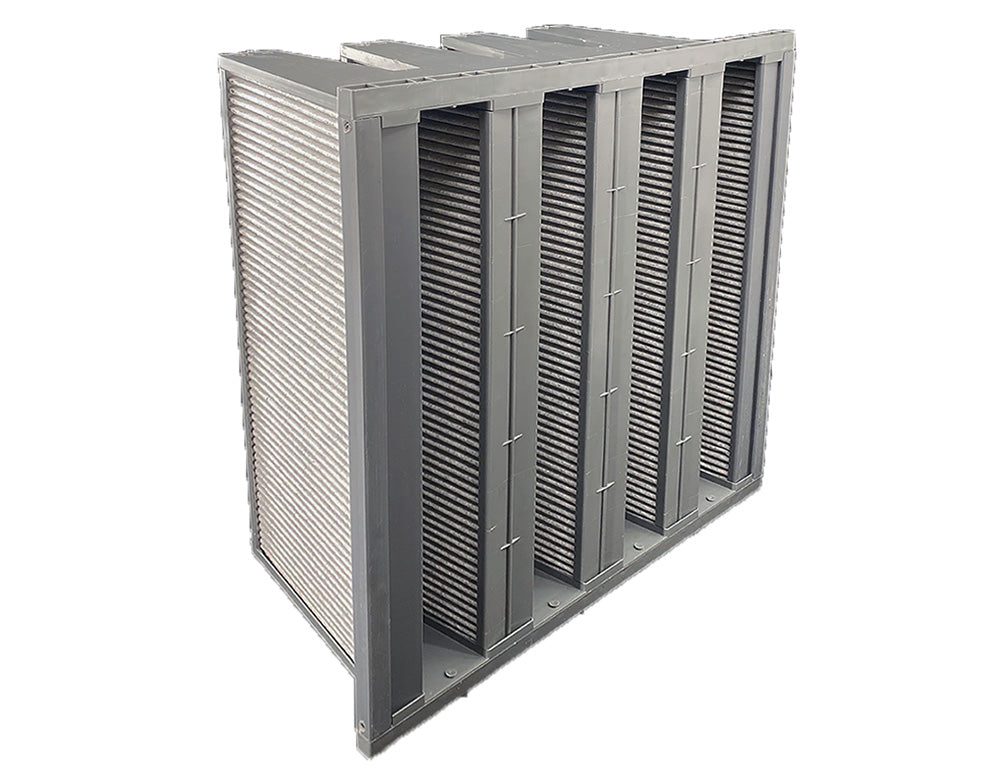

Koch DuraKleen V8 (MERV 8 Pleated V-Cell Activated Carbon Filter)
From $ 687.04
111-810-101
Couldn't load pickup availability
Per the Koch DuraKleen V15 & V8 Bulletin (Nov 2024), the Koch DuraKleen V8 is a MERV 8 pleated V-cell activated carbon filter engineered for combined particulate and gas-phase filtration. The DuraKleen V8 uses premium grade granular 60% activated coconut shell carbon, encapsulated in pleated media packs between two synthetic layers, for effective removal of odors, VOCs, diesel exhaust, acid gases, ammonia, and amines. With 0.23″ w.g. initial resistance at 500 FPM, the V8 balances gas-phase capacity with airflow performance.
What you get: pleated V-cell carbon filters, sold by the case
Each variant is a complete DuraKleen V8 pleated V-cell filter with a recyclable high-impact polystyrene frame, single header configuration, premium coconut shell activated carbon encapsulated in synthetic pleated media packs. All variants are 12″ deep:
- 24″x24″x12″ — 7 lbs carbon, Single filter per case
- 20″x24″x12″ — 5.5 lbs carbon, Single filter per case
- 20″x20″x12″ — additional size — carbon load proportional to face area, Single filter per case
- 12″x24″x12″ — 3.5 lbs carbon, Case of 2
The 20″x20″x12″ size is stocked by RTF beyond Koch's published table (which lists 24x24x12, 20x24x12, and 12x24x12 only). It uses the same DuraKleen V construction at proportional carbon load.
Important: DuraKleen V vs DuraKleen (CPS) — two distinct product lines
Koch produces two filter lines that share the "DuraKleen" name but use different carbon technology and serve different applications:
- DuraKleen V8 (this product): Pleated media packs encapsulating premium coconut shell granular carbon between two synthetic layers. Plastic (high-impact polystyrene) frame. Available in MERV 8 and MERV 15. SKU prefix 111-810 (V8) or 111-811 (V15). Use for combined particulate + gas-phase filtration in airports, industrial facilities, chemical plants, and office buildings.
- DuraKleen (CPS technology): Celbond Particulate Structure (CPS) media with 500 gsm of 20x50 mesh activated carbon suspended in a 3D bicomponent fiber network. Plastic and metal frame. Available in three header configurations (Single Header, Box Style/No Header, Double Header) and MERV 8 or MERV 15. SKU prefix 112-685/689/687/684/686. Use for sub-ppm airborne molecular contamination (AMC) and polishing filtration in cleanrooms, semiconductor, museums, and pharmaceutical.
If you're unsure which DuraKleen line fits your application, contact RTF support — the product name is shared, but the construction and ideal use cases differ.
DuraKleen V8 construction and specifications
- Form factor: Extended-surface pleated V-cell carbon filter, 12″ deep
- Carbon: Premium grade granular 60% activated coconut shell carbon
- Media architecture: Pleated media packs encapsulating the carbon between two synthetic layers, with the highly active small carbon granules positioned for higher adsorption rates
- Media composition: 100% synthetic mechanical media impregnated with activated carbon
- Frame: Plastic (high-impact polystyrene) — rugged, rigid, easy to install. Frame is recyclable.
- Header configuration: Single header only
- Sealant: Thermoplastic hot-melt adhesive secures the individual carbon cells within the frame and eliminates air bypass
- MERV rating: MERV 8 per ASHRAE Test Standard 52.2
- Initial resistance: 0.23″ w.g. @ 500 FPM
- Recommended final resistance: 1.5″ w.g.
- Maximum continuous operating temperature: 130°F (54°C)
- Manufacturing: Manufactured by an ISO 9001 registered company
- Disposability: Single-use disposable; not washable
Performance data (Koch DuraKleen V series)
| Efficiency Tier | Initial Resistance @ 500 FPM | Final Resistance | MERV Rating |
|---|---|---|---|
| DuraKleen V8 | 0.23″ w.g. | 1.5″ w.g. | MERV 8 |
| DuraKleen V15 | 0.40″ w.g. | 1.5″ w.g. | MERV 15 |
The V8 variant (this product) is highlighted above. The MERV 15 layer is denser than the MERV 8 layer, which is why the V15 has higher initial resistance (0.40″ vs 0.23″). Verify your HVAC system can handle the resistance before specifying.
Targeted contaminants and gases (per Koch)
Per Koch's features list, DuraKleen V is designed for effective removal of:
- Odors and volatile organic compounds (VOCs)
- Diesel exhaust
- Acid gases
- Ammonia
- Amines
The combination of premium coconut shell carbon and pleated media architecture targets these specific gas-phase contaminants alongside MERV 8 particulate capture.
Contaminants effectively controlled by activated carbon
Premium 60% activated coconut shell carbon effectively adsorbs a broad spectrum of gas-phase contaminants. Categories well-controlled include:
- Volatile organic compounds (VOCs) and solvents: acetone, toluene, xylene, methyl ethyl ketone (MEK), methyl isobutyl ketone (MIBK), ethyl acetate, butyl acetate, mineral spirits
- Chlorinated compounds: carbon tetrachloride, chloroform, trichloroethylene, tetrachloroethylene, ethylene dichloride, chlorobenzene
- Aromatic hydrocarbons: benzene, ethylbenzene, styrene, toluene, xylene, naphtha
- Aliphatic hydrocarbons: hexane, heptane, octane, decane, undecane, dodecane, cyclohexane
- Alcohols and ketones: butyl alcohol, ethanol, isopropyl alcohol, isoamyl alcohol, cyclohexanone, diethyl ketone
- Sulfur compounds: carbon disulfide, dimethyl disulfide, ethyl sulfide, butyl mercaptan, thiophenol
- Nitrogen-containing: pyridine, dibutylamine, pentylamine, nitrogen dioxide (<100 ppb), nitroethane
- Phenols and acids: phenol, cresol, acetic acid, butyric acid, formic acid, propionic acid, valeric acid
Koch publishes a comprehensive list of approximately 100+ specific compounds in the DuraKleen V15 & V8 bulletin linked at the bottom of this page.
Applications
DuraKleen V is specified for:
- Airports
- Industrial facilities
- Chemical plants
- Office buildings
- And other commercial air filtration systems where combined particulate and gas-phase adsorption is required at MERV 8 efficiency
DuraKleen V8 vs V15 — choosing your tier
Koch produces DuraKleen V in two efficiency tiers. The choice comes down to particulate efficiency vs pressure drop:
- DuraKleen V8 (this product): MERV 8 particulate efficiency, 0.23″ w.g. initial resistance. Use when pressure-drop budget is tight or when standard MERV 8 particulate capture is sufficient. The lower pressure drop is the efficiency-tier advantage.
- DuraKleen V15: MERV 15 particulate efficiency, 0.40″ w.g. initial resistance. Captures fine particles including wildfire smoke and virus-laden aerosols alongside the gas-phase carbon performance. Use when fine particulate filtration matters alongside gas removal.
Other Koch carbon filtration options
- For maximum gas-phase capacity (18–26 lbs carbon per filter) without MERV 13+ requirements, see Koch DuraPure Standard Capacity or DuraPure High Capacity — honeycomb carbon cell construction.
- For sub-ppm AMC removal (cleanrooms, museums, semiconductor), see the Koch DuraKleen (CPS technology) family — bicomponent fiber media with 500 gsm 20x50 mesh carbon.
- For 1″/2″/4″ pleated panel form factors, see the OdorKleen family: OdorKleen ES (MERV 8), OdorKleen 250 (CarbonWeb MERV 8), OdorKleen 200/M13 (MERV 13), and OdorKleen 600 (MERV 10).
Sizing and ordering notes
- Sizes are nominal. Per Koch, actual dimensions follow the standard "1/2″ less than nominal" pattern in width and height (e.g., 24″x24″ nominal = approximately 23-3/8″x23-3/8″ actual). Confirm your filter housing accommodates the nominal size.
- 12″ deep filters require deep filter racks. These are commercial/industrial-scale filters — verify your filter housing accommodates 12″ depth before ordering.
- Single header configuration only — if your housing requires no-header (box style) or double-header configuration, see the DuraKleen CPS line which offers all three header configurations (physically different product, different carbon technology).
- Each variant ships in the case quantity shown. 24x24x12 and 20x24x12 ship as individual filters; 12x24x12 ships 2 per case; 20x20x12 ships individually.
- Replacement schedule: Drive by pressure drop curve and odor breakthrough. With Koch's recommended 1.5″ w.g. final resistance, estimate service life from your typical airflow. The V8 starts at 0.23″ w.g. clean.
- Operating temperature limit: 130°F continuous max. Lower than DuraPure or OdorKleen 600 (180°F), so not suitable for elevated-temperature applications.
- Carbon disposal: Spent carbon may have specific disposal requirements depending on captured contaminants and quantities. Follow your local hazardous waste regulations.
Koch product literature
Detailed product specifications, the complete contaminant list, capacity tables, and full performance data for Koch DuraKleen V8 and V15 are published in the Koch DuraKleen V15 & V8 Bulletin (Nov 2024): DuraKleen V15 & V8 Product Specification PDF (Koch Filter Corporation). Available through Koch Filter Corporation (kochfilter.com) or contact RTF support.
Specifications
Specifications
|
Nominal Size |
|
|---|---|
|
Actual Size |
|
|
MERV Rating |
8 |
|
Filter Media |
100% synthetic mechanical media impregnated with activated carbon. Premium grade granular 60% activated coconut shell carbon, encapsulated between two synthetic layers in pleated media packs. MERV 8 particulate capture. ISO 9001 manufactured. |
|
Filter Support Grid |
Pleated synthetic media packs encapsulating carbon between two synthetic layers; thermoplastic hot-melt adhesive seals carbon cells |
|
Frame |
High-impact polystyrene plastic frame -- rugged, rigid, easy to install. Single header configuration. Recyclable. |
|
Removes |
Captures particulate (MERV 8 per ASHRAE 52.2) AND removes odors, volatile organic compounds (VOCs), diesel exhaust, acid gases, ammonia, and amines (per Koch features list). Premium 60% activated coconut shell carbon for broad-spectrum gas-phase adsorption. |
|
Life |
Disposable single-use |
|
Quantity |
1 |
|
Part Number |
111-810-101 |
|
Special Order |
Yes |
