Koch OdorKleen 200/M13 (MERV 13 High-Capacity Carbon Particulate Filter)
From $ 659.25
102-793-002
Couldn't load pickup availability
Per the Koch OdorKleen 200/M13 product bulletin, the Koch OdorKleen 200/M13 is a MERV 13 carbon/alumina pleated filter engineered for environments where fine particulate filtration AND gaseous contaminant removal both matter. The OdorKleen 200/M13 contains 200 gsm of granular activated carbon attached to a MERV 13 filtration layer, and is designed to remove ammonia, formaldehyde, sulfur dioxide, and hydrogen sulfide while delivering MERV 13 particulate efficiency.
What you get: MERV 13 carbon/particulate panel filters, sold by the case

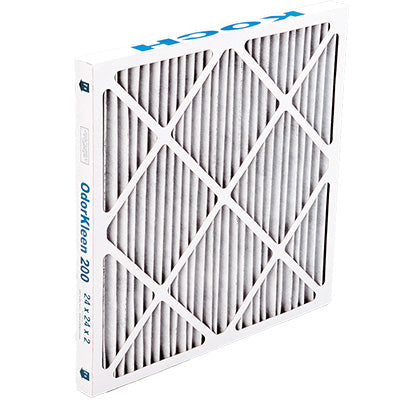

Each variant is a single OdorKleen 200/M13 pleated panel with a recyclable beverage board frame, integrated carbon-impregnated gas-phase media, and a polyester MERV 13 particulate-capture layer. Available in 1″, 2″, and 4″ depths. The price you see for each variant is the full case price:
-
1″ depth filters (8 sizes):
- 12″x24″x1″ — 12 filters per case
- 16″x20″x1″ — 12 filters per case
- 16″x25″x1″ — 12 filters per case
- 18″x24″x1″ — 12 filters per case
- 20″x20″x1″ — 12 filters per case
- 20″x24″x1″ — 12 filters per case
- 20″x25″x1″ — 12 filters per case
- 24″x24″x1″ — 12 filters per case
-
2″ depth filters (8 sizes):
- 12″x24″x2″ — 6 filters per case
- 16″x20″x2″ — 6 filters per case
- 16″x25″x2″ — 6 filters per case
- 18″x24″x2″ — 6 filters per case
- 20″x20″x2″ — 6 filters per case
- 20″x24″x2″ — 6 filters per case
- 20″x25″x2″ — 6 filters per case
- 24″x24″x2″ — 6 filters per case
-
4″ depth filters (8 sizes):
- 12″x24″x4″ — 3 filters per case
- 16″x20″x4″ — 3 filters per case
- 16″x25″x4″ — 3 filters per case
- 18″x24″x4″ — 3 filters per case
- 20″x20″x4″ — 3 filters per case
- 20″x24″x4″ — 3 filters per case
- 20″x25″x4″ — 3 filters per case
- 24″x24″x4″ — 3 filters per case
Why MERV 13 plus carbon
Standard MERV 13 pleated filters capture fine particulate (smoke, fine dust, virus-sized particles) but do nothing for gas-phase contaminants — odors, VOCs, and the specific gases that activated carbon is designed to adsorb. Standard carbon-impregnated filters target gases but typically deliver only MERV 8 particulate efficiency, missing finer particles.
The OdorKleen 200/M13 is engineered for applications that need both:
- MERV 13 particulate efficiency — captures fine particles down to sub-micron sizes including wildfire smoke, virus-laden aerosols, and fine industrial particulate
- 200 gsm carbon load — provides gas-phase adsorption capacity for odors, VOCs, and the specific gases listed in Koch's features (ammonia, formaldehyde, sulfur dioxide, hydrogen sulfide)
- Tradeoff: The MERV 13 layer is denser than the MERV 10 layer in OdorKleen 600, which costs airflow. The 200/M13's 2″ depth has higher initial resistance (0.53″ w.g. at 500 FPM) than the 600's 2″ depth (0.45″ w.g.). Verify your HVAC system can handle the higher pressure drop before specifying.
OdorKleen 200/M13 construction and specifications
- Form factor: Extended-surface pleated panel with two-stage media (gas-phase carbon + MERV 13 particulate layer)
- Carbon load: 200 gsm of granular activated carbon (per Koch). Koch describes the carbon as having "nearly five million square feet of surface area per pound."
- Particulate layer: Polyester blend MERV 13 efficiency layer
- Media: 100% synthetic carbon-impregnated mechanical media
- Media support: Self-supporting
- Frame: High wet-strength beverage board with cross-member designed to increase filter strength and rigidity. Frame is recyclable.
- MERV rating: MERV 13 per ASHRAE Test Standard 52.2
- UL certification: Underwriters Laboratories classified to UL 900
- Maximum continuous operating temperature: 180°F (93°C)
- Recommended Final Resistance: 1.2″ w.g.
- Available depths: 1″, 2″, and 4″
- Disposability: Single-use disposable; not washable
Performance data by depth
| Filter Depth | Test Air Velocity | Initial Resistance | Recommended Final Resistance | Pleats / Linear Foot |
|---|---|---|---|---|
| 1″ | 300 FPM | 0.34″ w.g. | 1.2″ w.g. | 15 |
| 2″ | 500 FPM | 0.53″ w.g. | 1.2″ w.g. | 14 |
| 4″ | 500 FPM | 0.48″ w.g. | 1.2″ w.g. | 9 |
The MERV 13 particulate layer delivers finer filtration than the MERV 8 or MERV 10 layers in other OdorKleen products, with corresponding higher pressure drop. Pleat density at 1″ (15 pleats per linear foot) and 2″ (14 pleats per linear foot) provides the media area needed for both fine particulate capture and gas adsorption.
Targeted gaseous contaminants
Per Koch's product features, OdorKleen 200/M13 is designed to remove:
- Ammonia (NH3) — alkaline gas common in pharmaceutical, agricultural, and laboratory environments
- Formaldehyde (HCHO) — off-gas from new construction materials, laminate adhesives, embalming, and some manufacturing processes
- Sulfur dioxide (SO2) — combustion byproduct and industrial process contaminant
- Hydrogen sulfide (H2S) — rotten-egg odor at low concentrations, toxic at higher levels; common in wastewater treatment, oil & gas, and certain industrial processes
Applications
OdorKleen 200/M13 is specified for environments needing both fine particulate filtration and gaseous contaminant control:
- Chemical Storage
- Laboratories
- Museums and Archives
- Pharmaceutical
- Hospitals
- Airports
- Industrial Facilities
- Commercial Office Buildings
- Sports Arenas
- Smoking Lounges
- Casinos
- Laminate Adhesives (manufacturing)
- IAQ Emergency response
Choosing the right OdorKleen tier
Koch produces four carbon-impregnated pleated filters in the OdorKleen product family. Choosing between them depends on whether you need higher particulate efficiency or higher carbon capacity:
- OdorKleen 200/M13 (this product): MERV 13, 200 gsm carbon. Highest particulate efficiency in the family. Use when fine particulate (wildfire smoke, virus aerosols, fine industrial dust) is the primary concern AND gas-phase capacity is needed.
- OdorKleen 600: MERV 10, 592 gsm carbon/alumina blend with 5% KMnO4. Highest carbon capacity in the family. Use when gas/odor removal is the primary concern, especially for ammonia, formaldehyde, SO2, H2S in heavy industrial settings.
- OdorKleen 250: MERV 8, 250 gsm CarbonWeb® carbon with potassium permanganate alumina. Mid-tier general carbon filter for heavy VOC loads. Use for pharmaceutical, lab, museum applications without the MERV 13 requirement.
- OdorKleen ES: MERV 8, basic carbon impregnation. Standard carbon-impregnation pleated filter for lighter contaminant loads. Use for office buildings, schools, and standard HVAC environments with light to moderate odor and VOC loads.
If you're unsure which tier fits your application, contact RTF support with your contaminant profile, target gases, particulate concerns, and operating conditions, and we'll help match the right filter.
Sizing and ordering notes
- Sizes are nominal. Match nominal dimensions to your filter slot. Actual filter dimensions are typically 1/2″ less than nominal in width and height per the Multi-Pleat XL8 frame family standard.
- Carton qty varies by depth: 1″ ships 12 per case, 2″ ships 6 per case, 4″ ships 3 per case — reflecting filter weight and shipping density.
- Additional small sizes available: Per Koch, the OdorKleen 200/M13 product line includes 12″x12″x1″ and 12″x12″x2″ sizes not stocked in this RTF lineup. Request a quote for these or for custom sizes.
- Pressure drop consideration: The MERV 13 layer means higher initial resistance than other OdorKleen products. Verify your HVAC system fan capacity can handle the airflow demand before specifying, especially for retrofit applications.
- Replacement schedule: Standard MERV 13 maintenance interval applies, but odor breakthrough or gas-specific breakthrough is the practical end-of-life signal — if ammonia, formaldehyde, sulfur, or hydrogen sulfide odors return, the carbon has saturated regardless of pressure drop.
- Operating temperature: Continuous operation up to 180°F (93°C). Suitable for elevated-temperature HVAC applications.
- Disposal: Filters loaded with target gases (ammonia, formaldehyde, SO2, H2S) or other industrial contaminants may have specific disposal requirements depending on captured contaminants and quantities. Follow your local hazardous waste regulations.
- Frame is recyclable once stripped of the spent media.
- UL 900 classified — meets standard UL fire and flammability classification for HVAC air filters.
Koch product literature
Detailed product specifications, capacity tables, efficiency curves, and complete performance data for Koch OdorKleen 200/M13 are published in the Koch OdorKleen 200/M13 product bulletin: OdorKleen 200/M13 Product Specification PDF (Koch Filter Corporation). Available through Koch Filter Corporation (kochfilter.com) or by request through RTF.
Specifications
Specifications
|
Nominal Size |
|
|---|---|
|
Actual Size |
|
|
MERV Rating |
13 |
|
Filter Media |
100% synthetic carbon-impregnated mechanical media. 200 gsm of granular activated carbon attached to a MERV 13 polyester blend particulate filtration layer. Self-supporting. |
|
Filter Support Grid |
Self-supporting media |
|
Frame |
High wet-strength beverage board with cross-member for filter strength and rigidity. Recyclable frame. |
|
Removes |
Captures fine particulate (MERV 13 per ASHRAE 52.2 -- wildfire smoke, virus aerosols, fine industrial particulate) AND removes specific gaseous contaminants: ammonia (NH3), formaldehyde (HCHO), sulfur dioxide (SO2), and hydrogen sulfide (H2S). 200 gsm activated carbon for gas-phase adsorption. |
|
Life |
Disposable single-use |
|
Quantity |
12 |
|
Part Number |
102-793-002 |
|
Special Order |
Yes |
