HVAC for Auto Repair Shops: Fumes & Dust

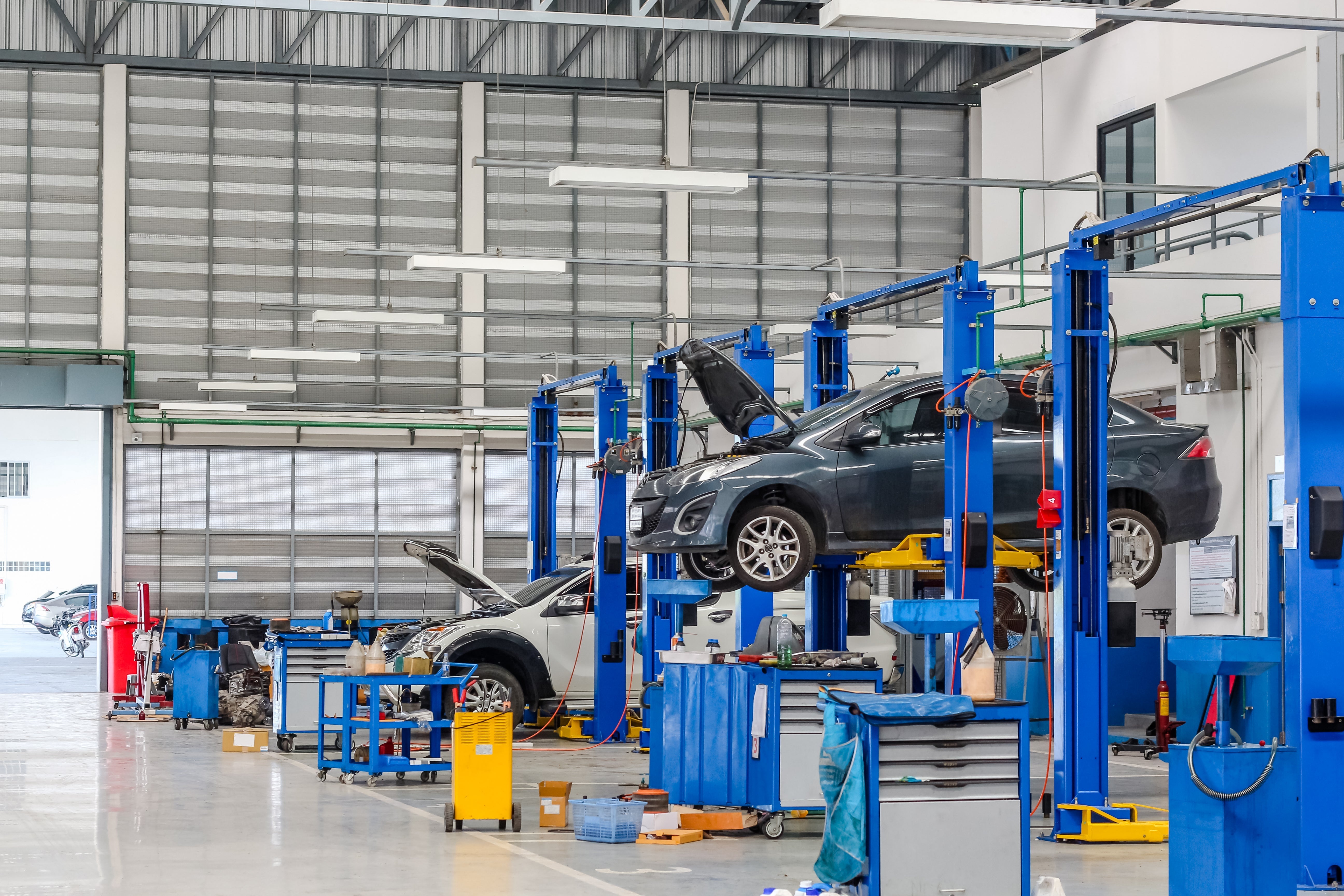

Auto repair bays throw a rough mix at the air: exhaust, solvent vapors, welding smoke, and clouds of sanding dust. A standard comfort-cooling setup was never built for that load. Getting the ventilation and filtration right protects your crew's lungs, keeps the shop cleaner, and stops fine dust from chewing up your equipment.
Why shop air is so hard to manage
Almost every job in a repair shop releases something. Welding gives off metal fume, grinding and sanding kick up fine particulate, and running engines add carbon monoxide plus volatile organic compounds (VOCs) from fuels, solvents, and paints. Paint and body work layer on chemical vapors that hang around long after the spray gun goes quiet.
Left alone, that mix irritates airways, cuts visibility, and—because a lot of it is combustible—raises real safety concerns. Customers notice a hazy, chemical-smelling waiting room too. Clean air is both a health issue and a business one.
Build the system in layers
No single component fixes shop air. Think of it as stacked defenses, each handling what the last one misses:
- Source capture first. Tailpipe exhaust hoses, downdraft tables, and welding fume arms grab contaminants at the point they are created. This is the most effective and most overlooked step—pull fumes before they ever mix into the room.
- General ventilation. High-CFM exhaust paired with fresh-air makeup keeps the whole bay turning over. Size it to your square footage and the number of stalls running at once.

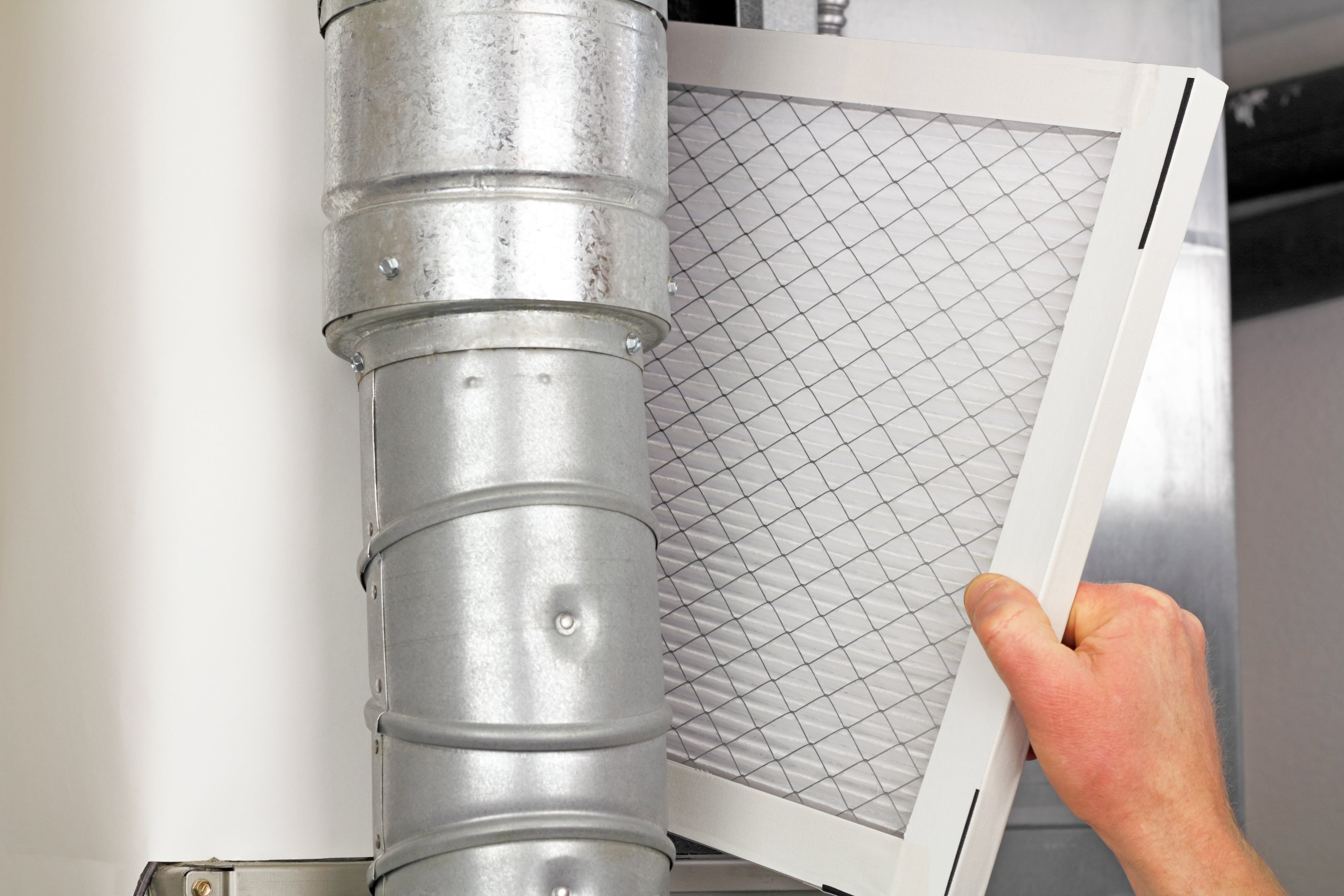

- Mechanical filtration. This is where your HVAC filters earn their keep, trapping the airborne dust that spot-capture misses.
Choosing filters for a shop

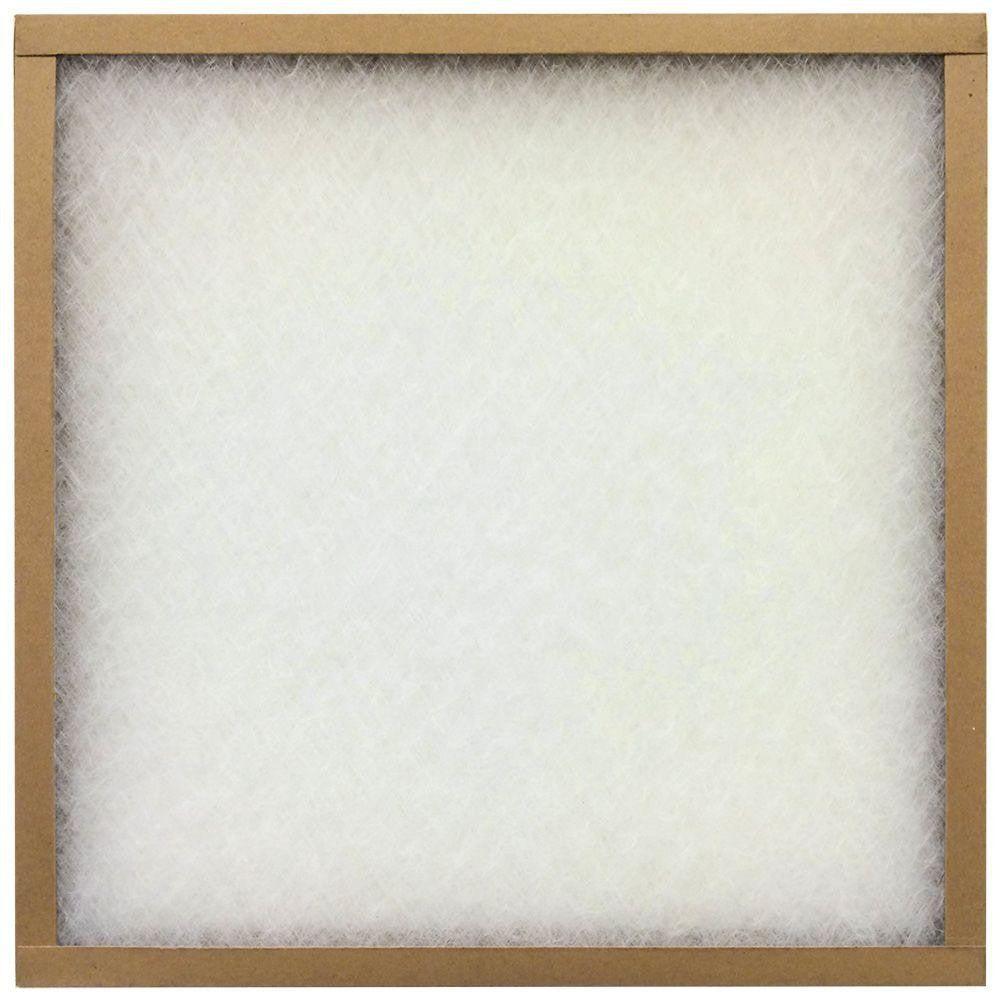

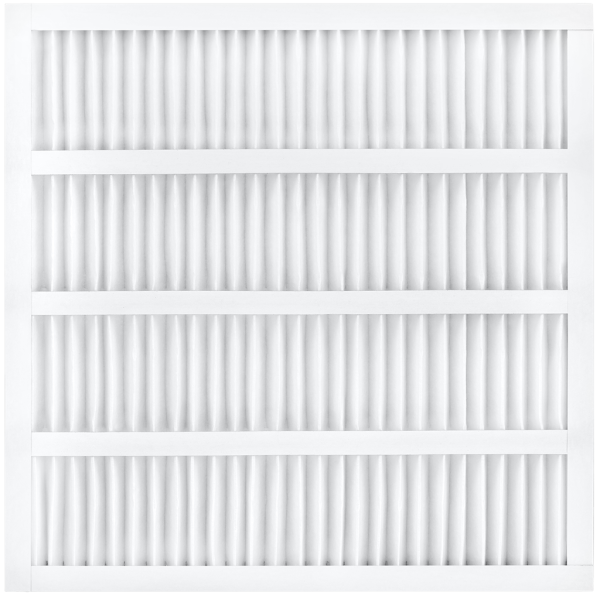

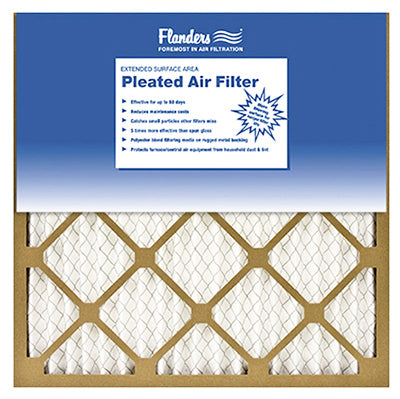

Basic fiberglass panels are a non-starter here—they pass most of the fine dust straight through. For particulate, a pleated HVAC filter in the MERV 11 to MERV 13 range captures the fine debris that grinding and sanding produce. Just remember that higher MERV means more airflow resistance, so confirm your air handler can move air across a denser filter before you jump to the top of the range. If you are weighing the trade-offs, our guide on why pleated filters beat fiberglass in commercial HVAC lays it out.

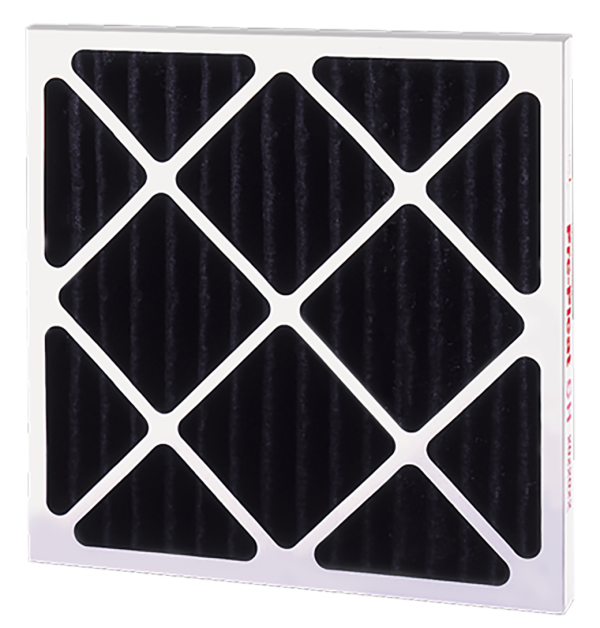

Particulate filters do nothing for gases and odors, though. That is a job for activated-carbon or gas-phase media, which adsorb VOCs and the smell of solvents and exhaust. Our overview of carbon and gas-phase filters explains how they complement a standard pleated filter rather than replace it.
In dusty bays, add an inexpensive pre-filter ahead of your main filter. It catches the coarse stuff, so your primary filter lasts longer and keeps working at full efficiency.
Keep it running
Grease and dust load a shop filter far faster than a home filter. Plan on checking filters monthly and swapping them every one to two months, sooner during heavy body-work stretches. Pair that with quarterly attention to ducts and exhaust fans so airflow stays strong. If your shop uses an odd equipment size, a made-to-measure custom filter means you are never stuck cutting a filter down to fit. Many of the same principles apply to other high-dust commercial spaces—see our take on managing air quality in large storage spaces.
Finally, a cheap air-quality monitor that tracks CO, VOCs, and particulate tells you whether the whole system is actually keeping up. If odors linger between paint jobs, our roundup of filters for reducing smoke and odors is a useful next read.
Frequently asked questions
What MERV rating should an auto shop use?
MERV 11 to 13 is the practical sweet spot for capturing fine sanding and grinding dust while keeping airflow reasonable. Verify your air handler can handle the added resistance, and add a pre-filter to protect the main filter in dusty areas.
Do HVAC filters remove exhaust fumes and solvent smells?
Not on their own. Pleated filters capture particles, not gases. To cut VOCs, exhaust odor, and solvent vapors you need activated-carbon or gas-phase media in addition to your particulate filter, plus strong source-capture ventilation.
How often should shop filters be changed?
Every one to two months in most shops, and more often during heavy sanding or paint work. Grease and fine dust clog filters quickly, so inspect monthly and replace as soon as they look loaded.
