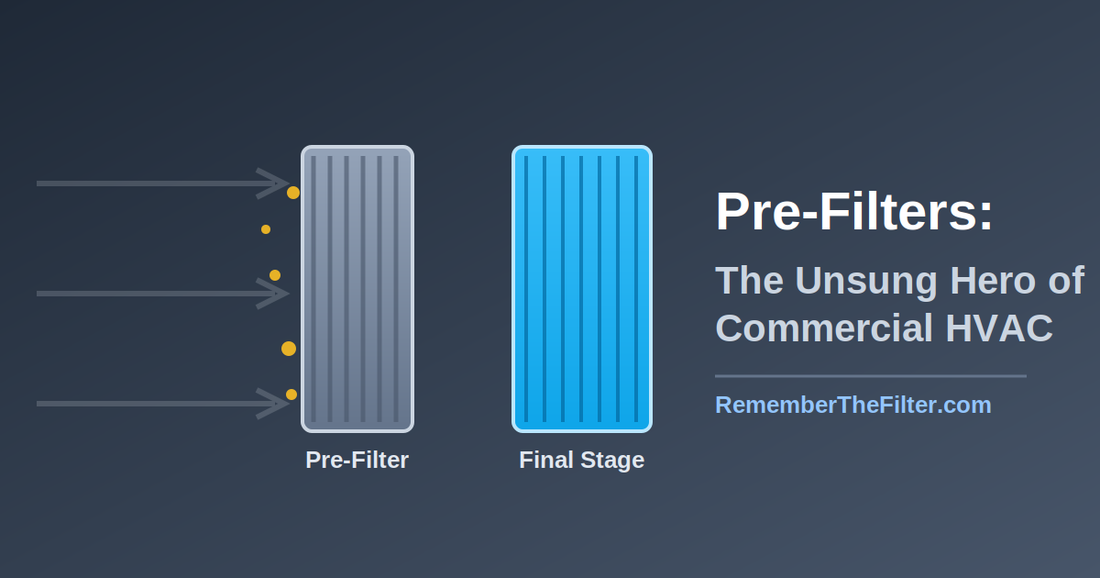

Commercial HVAC Pre-Filters: A Practical Guide
The cheapest filter in your commercial HVAC system quietly protects the most expensive ones. Here's how smart filtration staging extends final-filter life, lowers static pressure, and cuts total cost of ownership.
In a commercial HVAC system, the cheapest filter often does the most valuable work. The pre-filter—the low-cost first stage sitting ahead of your high-efficiency final filters—quietly protects the expensive stages behind it. Get your pre-filtration right and you extend the life of every downstream filter, protect your coils, and lower the total cost of running your air handlers, often without touching your final-stage spec at all.
What a pre-filter actually does
A pre-filter is the first stage of filtration air passes through before reaching a higher-efficiency final filter. Its job isn't to capture the fine, health-relevant particles—that's the final stage's role. Instead, the pre-filter strips out the large, fast-loading debris: lint, fibers, hair, insects, and coarse dust that would otherwise blind a more expensive filter in a fraction of its rated life. Think of it as a bouncer at the door. By the time air reaches your bag filters or rigid cells, the heavy load is already gone, so those final filters spend their capacity on the fine particulate they were actually built to catch. Most commercial pre-filters land around MERV 8, commonly in pleated or ring-panel formats—inexpensive, easy to change, and built to be swapped more often than the stages behind them.
Why pre-filters save facilities money
The math is simple, and it's the part facility managers most often overlook. A final-stage bag or rigid filter is expensive to buy and to replace, since changing one usually means more labor and more downtime. A pleated pre-filter is cheap and fast to swap. When you let the pre-filter absorb the bulk of the dust load, you change the inexpensive filter often and the costly one rarely—shifting spending toward the low-cost stage and stretching the interval on the high-cost stage. You also keep static pressure lower across the system for longer, so fans don't work as hard to move the same air. Lower fan energy and fewer premature final-filter changes add up across a building and multiply across a portfolio. For a deeper look at that dynamic, see how high-efficiency filters affect energy costs in commercial facilities.
Single-stage vs. multi-stage filtration
Not every system needs a pre-filter, but most commercial systems running MERV 11 or higher final stages benefit from one. Here's how the two approaches compare:
| Factor | Single-stage only | Pre-filter + final stage |
|---|---|---|
| Final filter life | Loads fast with all particle sizes | Extended—coarse load removed upstream |
| Replacement cost | Frequent changes of the expensive filter | Frequent cheap swaps, rare expensive ones |
| Static pressure | Climbs quickly as the filter loads | Stays lower across the service interval |
| Labor & downtime | Higher—final-stage changes take longer | Lower—quick pre-filter swaps |
| Coil protection | Depends on one filter | Two lines of defense before the coil |
Why MERV matters so much in these environments is covered in our piece on MERV ratings in commercial HVAC systems.
Choosing the right pre-filter
- Match the MERV to your final stage. The pre-filter should meaningfully reduce the load on the final filter without adding unnecessary pressure drop. A MERV 8 pleated pre-filter ahead of a MERV 13–14 final filter is a common, balanced pairing.
- Get the depth right. Pre-filters come in 1″, 2″, and 4″ depths depending on the housing. Deeper media holds more dust and lasts longer between swaps.
- Seal the opening. Gaps around the frame let air bypass the media entirely. For non-standard or retrofitted cavities, a custom-built exact size prevents bypass.
- Set a realistic cadence. Pre-filters are designed to load faster, so give them a shorter, scheduled replacement interval. A pre-filter left in too long becomes a pressure-drop problem of its own—see what pressure drop means for your system.
Matching pre-filters to final stages
The pre-filter is only half the equation—the final stage it protects matters just as much. Commercial systems commonly pair pleated pre-filters with bag or rigid final filters; our look at bag filters vs. box filters and the difference between pleated and pre-pleat filters can help you spec the pairing. We carry the high-efficiency stages that sit behind a good pre-filter, including Koch air filters—their Multi-Sak bag filters are a common final-stage choice—plus AAF Flanders lines you'll find across our HVAC filter and furnace filter collections. Need volume pricing or a multi-property program? Our filtration specialists have been sizing staged systems since 2006.
Frequently asked questions
What MERV rating should a commercial pre-filter be?
Most commercial pre-filters fall around MERV 8. The goal is to capture coarse particles efficiently while keeping pressure drop low, then let a higher-MERV final stage handle the fine particulate.
How often should pre-filters be changed?
Pre-filters are built to load faster than final stages, so they're replaced more frequently on a shorter, scheduled cadence. The exact interval depends on dust load, runtime, and media depth—the principle is to swap the cheap stage often so the expensive stage lasts.
Do pre-filters really save money?
Yes. By absorbing the bulk of the dust load, pre-filters extend the life of expensive bag and rigid filters, reduce labor and downtime from final-stage changes, and keep static pressure—and fan energy—lower over the service interval.
What if my air handler uses a non-standard filter size?
Older and retrofitted systems often have odd cavities. Rather than forcing a loose fit that lets air bypass, order a custom filter sized to your housing so the pre-filter seals properly.
