Product details

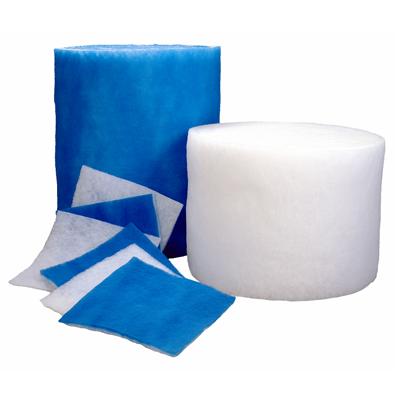

The Koch Type SPT10 Synthetic Pre-Cut Media Pad is a flat polyester filter pad in standard HVAC face sizes, designed for 2-inch frame applications where tackified media performance is needed across the widest range of commercial and industrial uses. The pad is constructed of airlayed polyester media at 1″ nominal loft, 6.8 oz/sq yd weight, blue/white color, tackified (dry adhesive treatment for enhanced dust holding), delivering ~MERV 7 efficiency per ASHRAE 52.2 and a recommended service life suited to its arrestance and dust holding profile.
What you get: sold by the case
Pre-cut media pads are sold by the case, not individually. The price you see for each variant is the full case price, and each variant label tells you exactly how many pads are in that case. Case counts by size:
- 16x20 — 25 pads per case
- 16x25 — 25 pads per case
- 20x20 — 25 pads per case
- 20x25 — 25 pads per case
- 24x24 — 25 pads per case
Need a partial case, individual-pad pricing, or a different quantity than the standard case? Request a quote with your exact count and we can work out the pricing.
Where pre-cut pads are used
Pre-cut synthetic pads are the filter medium itself — they slide into reusable pad frames, get held in place by retention grids in blanket installations, or stack into pad rack systems. The customer changes only the pad, leaving the frame or rack in place. Common applications:
- Reusable pad frames — metal or fiberboard frames that hold the pad and slide into the air handler
- Pad rack systems — multi-pad rack assemblies for high-volume filtration
- Blanket installations — large-area filtration where the pad is held by retention wire or grid
- Slide-rail housings designed for pad-style media rather than framed filters
- Field-cut applications — pads can be trimmed to non-standard dimensions where needed
Type SPT10 construction and specifications
- Media: Airlayed polyester synthetic fibers
- Nominal loft: 1″ (1.00″)
- Weight: 6.8 oz per square yard
- Color: Blue/white
- Tackifier: Dry tackifier treatment (downstream side, blue-tinted) for enhanced dust holding
- Initial pressure drop: 0.14″ w.g. at design air velocity
- Average arrestance: 86% per ASHRAE 52.1
- Dust holding capacity: 255 grams
- MERV rating: 7 per ASHRAE 52.2
- Reference bulletin: Koch PB-001-B
When the SPT10 pad is specified
- 2 inch frame commercial HVAC as a standard tackified pad medium — the most versatile choice in the SPT line
- Office buildings, schools, retail using pad-style filtration
- Light-industrial systems in pad rack installations
- Multi-stage filtration as a tackified prefilter ahead of higher-MERV final filters
What MERV 7 captures
Captures larger dust/lint/pollen fragments and finer particulate. Effective prefilter ahead of higher-MERV final stages, and a strong standalone choice in 2-inch frame and pad rack applications.
Choosing across the Koch synthetic pad line
Koch offers six pre-cut synthetic media pad types in the same five face sizes:
- SS5 (MERV 4): standard 1/2 inch dry pad, prefilter and 1 inch frame applications
- SS10 (MERV 5): 1 inch dry pad, versatile 2 inch frame and blanket use
- SPT5 (MERV 4): tackified 1/2 inch pad, upgraded dust holding for 1 inch frames
- SPT10 (this product) (MERV 7): tackified 1 inch pad, broad commercial and industrial use in 2 inch frames
- SPT-30 (MERV 8): dual-density tackified 2 inch pad, highest SPT capture
- SPT-550 (MERV 8): antimicrobial dual-density 1 inch pad, healthcare and food processing
Match the loft (1/2 inch, 1 inch, or 2 inch) to your existing frame depth, the tackifier choice to your dust loading expectations, and the MERV tier to your design spec. For applications requiring antimicrobial treatment, only the SPT-550 carries that specification. For higher-loft 2-inch frames, choose SPT-30. For dry-construction requirements (food processing, no-tackifier specs), choose SS5 or SS10.
Sizing and ordering notes
- Match face dimensions to your existing frame. Pads are sized as Width x Height (e.g., 24x24). The loft (depth) is the same across all variants of one product — chosen by which media type you order, not by the variant.
- Each variant shows its case quantity in the dropdown label. Look for "(Case of N)" next to each size — that's how many pads are in the case at that price.
- Available in 5 standard HVAC face sizes: 16x20, 16x25, 20x20, 20x25, 24x24. For non-standard sizes or bulk roll lengths, request a quote.
- Pads can be field-cut to non-standard dimensions if needed — the airlayed polyester construction trims cleanly with a sharp utility knife.
- Frames sold separately. Pre-cut pads are the filter medium — they require a reusable pad frame, retention grid, or pad rack to install in the air handler. Contact us for compatible frame and rack options.
- Bulk roll versions also available. Most of these media types are also sold in bulk rolls (60 ft to 135 ft long) for cut-to-size applications. Request a quote for bulk roll pricing.
