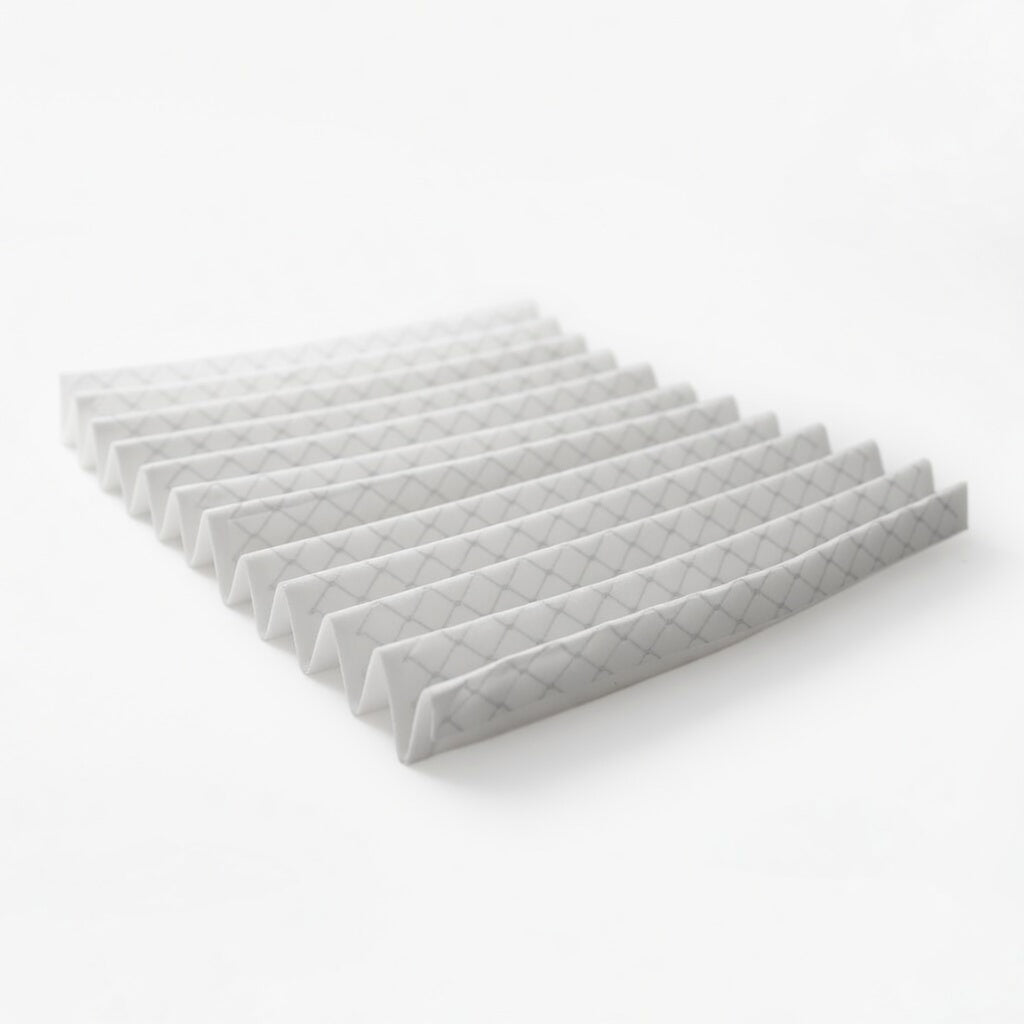

The Koch Multi-Pleat Green13 Insert is the media and pleat pack only — no frame — designed to drop into existing metal or other reusable holding frames. It carries a MERV 13 efficiency rating using the same Koch-engineered synthetic media as the standard Multi-Pleat Green13 framed line. Sold by the case: 100 inserts per case for 1″ and 2″ depths, 50 inserts per case for 4″ depths.
This insert is not a complete drop-in pleated panel filter. It is the replacement element for installations that already have a permanent or reusable frame in place. If you currently swap full filters with their own beverage board frames, you want the standard Multi-Pleat Green13 framed filter or one of Koch’s other complete pleated panel lines — not this insert.
The Multi-Pleat Green13 media advantage
The Green13 uses a Koch-engineered media composed of a specialized blend of electrostatically-charged synthetic polypropylene fibers. This E-Layer is built from rectangular-shaped fibers arranged in an intersecting cross-pattern design — Koch’s proprietary engineering for greater stability of the electrostatic charge, reduced pressure drop, and prolonged efficiency over the filter’s service life. The result is a MERV 13 element that delivers high-efficiency capture without the airflow penalty often associated with conventional MERV 13 media.
When this insert is specified
-
You have an existing reusable metal holding frame — common in commercial AHUs and built-in housing assemblies built around a permanent frame
-
You need MERV 13 efficiency in an insert form factor — healthcare, clinics, laboratories, pharmaceutical environments, schools, and commercial buildings requiring fine particle and respiratory droplet capture
-
You want to reduce per-changeout cost — insert-only replacement is significantly cheaper than buying complete framed filters because you reuse the frame across many service intervals
-
Your facility prefers media-only disposal — less material to discard at each changeout
-
You need a MERV 13 element matched to the standard Multi-Pleat Green13 — the inserts use the same Koch-engineered synthetic media as the framed Green13 line
Design and construction
-
Media: Specialized blend of electrostatically-charged 100% synthetic polypropylene fibers; rectangular fibers in an intersecting cross-pattern E-Layer design
-
Frame: NONE — this is the media and pleat pack only, designed to seat in an existing reusable frame
-
Configuration: Extended-surface pleated insert, available in 1″, 2″, and 4″ depths
-
Efficiency rating: MERV 13 per ASHRAE Test Standard 52.2-2012
-
Listings: UL Classified to UL 900 and ULC-S111-07 (matches the parent Multi-Pleat Green13 product)
What MERV 13 captures
Captures bacteria, smoke, viruses, and most respiratory droplets. Specified in healthcare, clinics, labs, and high-IAQ commercial spaces.
Green13 vs. XL11 vs. XL8 inserts: choosing the right efficiency
All three insert lines drop into the same reusable metal holding frames and share the same form factor — the difference is efficiency:
-
XL8 Insert (MERV 8): Standard residential and commercial HVAC. Captures dust, pollen, and pet dander. The most economical pick for general-purpose air handling.
-
XL11 Insert (MERV 11): Mid-tier efficiency for offices, schools, hotels, and light industrial. Dual-layer media (E-Layer + M-Layer) maintains performance across the service life. Captures fine dust, smoke, and most particles down to 1 micron.
-
Green13 Insert (this product, MERV 13): The highest-efficiency option in the insert line. Captures bacteria, smoke, viruses, and most respiratory droplets. Specified for healthcare, laboratories, pharmaceutical plants, and any system requiring high indoor air quality.
Confirm your HVAC system can handle the slightly higher pressure drop of MERV 13 before specifying. Newer commercial systems and many residential systems handle MERV 13 without airflow problems; older or undersized blowers may run better at MERV 11.
Important: this is an insert, not a complete filter
The Green13 Insert is intended for use in a reusable holding frame that you already own. It will not function as a stand-alone filter without a frame. If your filter slot expects a complete disposable filter (the typical setup for most residential and commercial HVAC cabinets), you want one of the complete framed Koch pleated panels — the standard Multi-Pleat Green13 (MERV 13 framed filter) or one of the lower-MERV options like the Multi-Pleat XL11, XL8, or Multi-Pleat Elite. If you’re unsure which form factor your installation uses, measure your filter slot and check whether your existing filter has its own frame or relies on a separate holding frame.
Sizing and ordering notes
-
Match the insert to your existing frame. Confirm both the nominal size and the depth your frame accepts before ordering.
-
Sizes listed are nominal. Actual insert dimensions are slightly under nominal — standard for the industry.
-
Sold by the case. 1″ and 2″ depths ship in cases of 100 inserts; 4″ depths ship in cases of 50 inserts. The variant price is the case price. Need a different volume? Request a quote for facility-scale orders.
