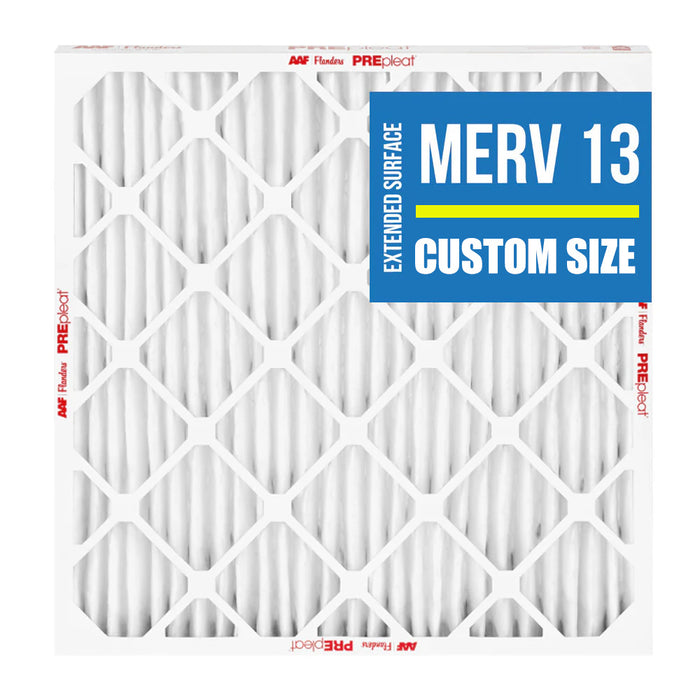

The PREpleat M13 pleated filter has a low initial resistance and supports achievement of LEED® credits by significantly improving Indoor Air Quality (IAQ) and reducing energy consumption.
The PREpleat M13 filter provides an initial efficiency of MERV 13 per ASHRAE Standard 52.2 at a resistance of only .20" w.g. (2" depth) when operating at airflow velocity of 375 FPM—and only 0.30" at 500 FPM.
Superior Design and Construction
Media: 100% non-woven synthetic media manufactured from recyclable material.
Media Support: Diamond-shaped expanded metal maintains maximum support while avoiding air bypass.
Pleat Design: V-Pleat design minimizes resistance, keeping consistent pleat count, height, and shape.
Frame: Heavy-duty two-piece moisture-resistant frame includes diagonal and horizontal support members bonded to the media on the air entering and leaving sides. This is a durable frame for any commercial and industrial application.
Operating Temperature Limits: Maximum operating temperature is 180°F (82°C).

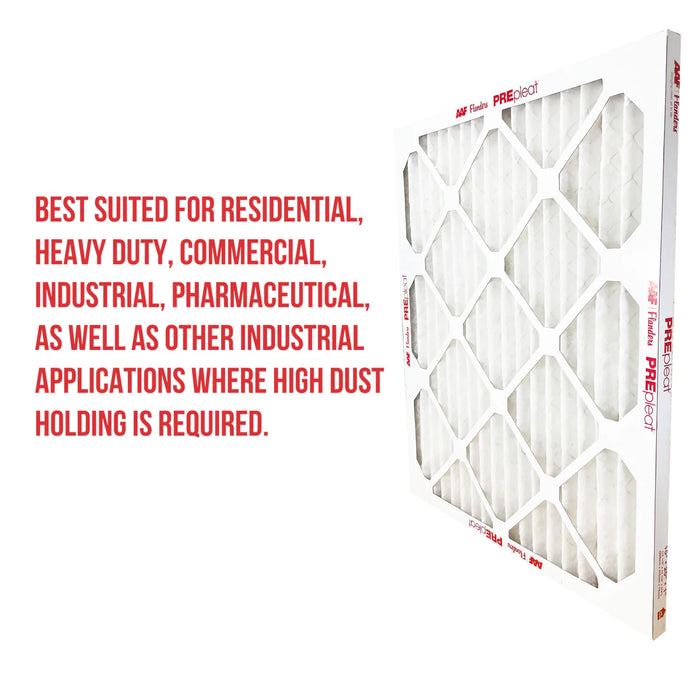

PREpleat M13 filters are designed for general air filtration in all types of cooling, heating, and ventilating systems. They can be used as prefilters to extend the life of higher efficiency filters or on their own. They are suitable for installation in front access holding frames and side access housings. These filters are excellent for upgrading from disposable panel filters, permanent filters, or media pads in metal frames where a higher level of cleaning is desired.
- High efficiency with low initial resistance
- 100% synthetic recyclable high-loft media
- 2-piece heavy-duty die-cut frame
- Expanded metal backing
- Double-wall frame
- Diagonal grid supports for maximum strength
- MERV 13

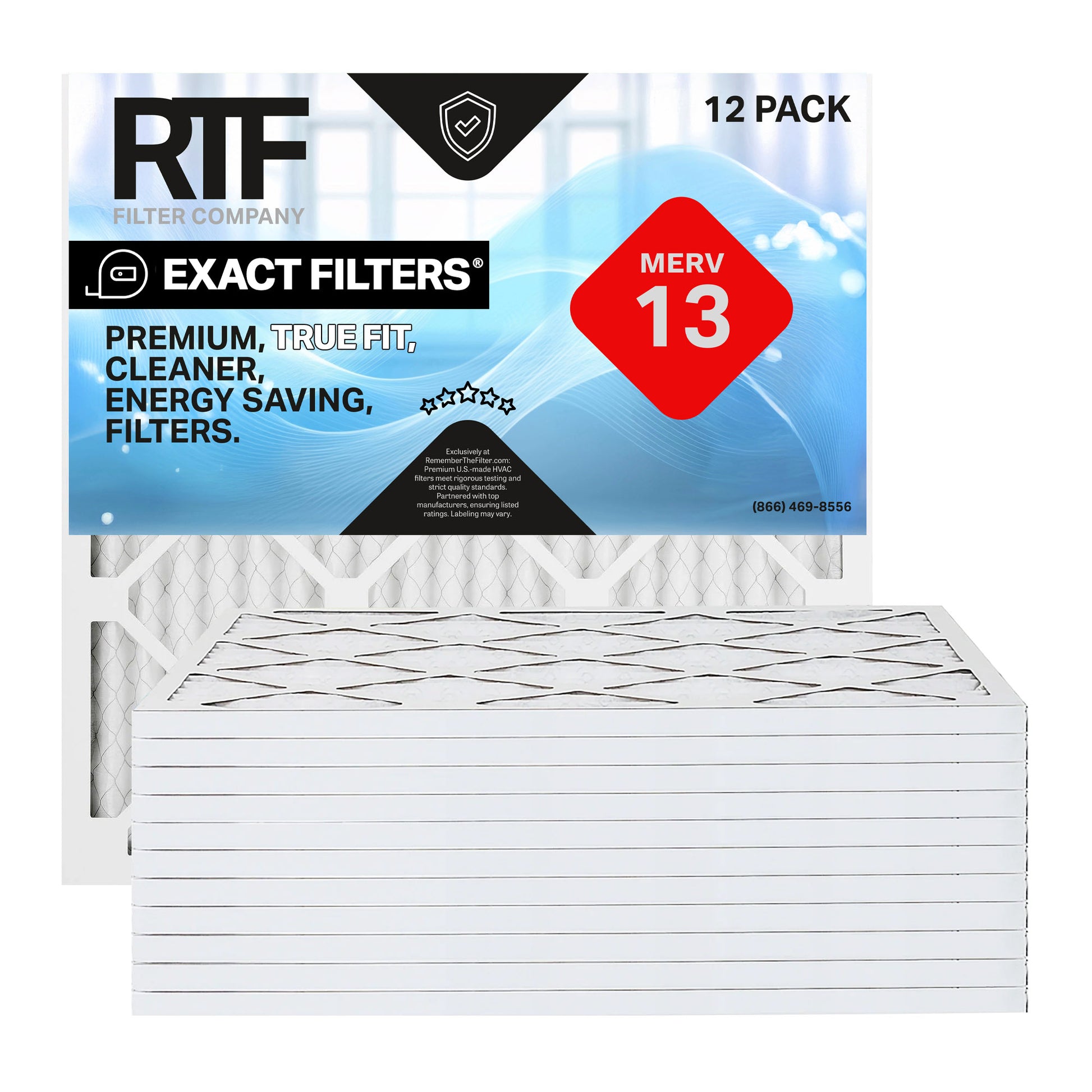

- Quantity: 12 Filters
- 1" and 2" depth available: 1" nominal = 3/4" actual size, 2" nominal = 1-5/8" actual size.
MERV Rating: MERV 13
Media: 100% synthetic non-woven, proprietary media that can be recycled. Engineered with a gradient density composition that achieves it's MERV rating using the mechanical method of particle capture. Media does not rely on an electrostatic charge to capture particulate, since electrostatic charged filters dissipate over time.
Frame: Heavy-duty, two piece, moisture-resistant frame with diagonal support members. Frame is bonded to the media at all points of contact for unsurpassed frame strength. Interlocking corners and positive media-to-frame seal reduce the possibility of air bypass.

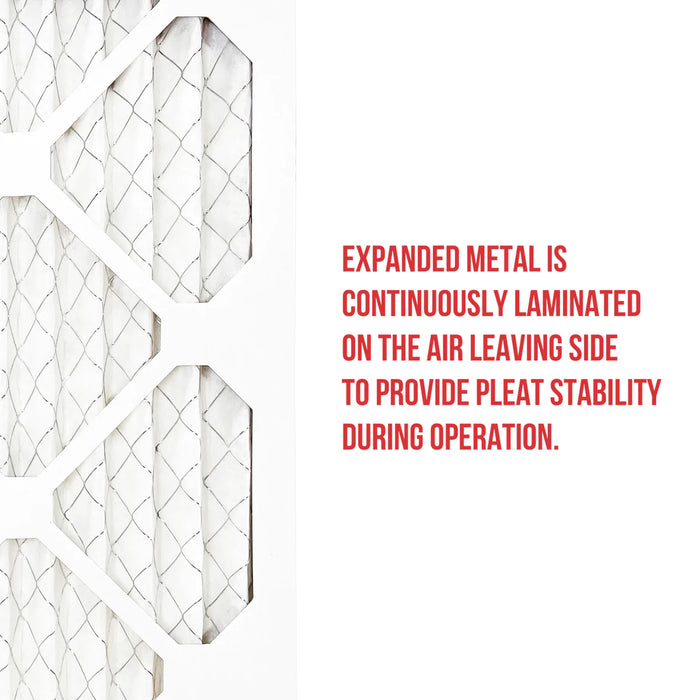

Support Grid: Expanded metal is continuously laminated on the air leaving side to provide pleat stability during operation. Pleat shape is maintained allowing full media utilization which improves dust holding capacity.
Replace: Recommended 90 day changeout
Removes: MERV 13 rating reduces up to 95% of airborne particles including dust and lint, dust mite debris, pollen, pet dander, mold spores, bacteria, microscopic allergens, virus carriers, most smoke, smog, oil smoke, as well as lead dust. Hospital-grade air filtration provides maximum protection for your home or business.
Quantity: 12 Filters
Part Number: C-90013
Custom Size: Filters will be manufactured to the exact size submitted with order. Purchase protected by no-worry filter fit guarantee.
Millions of Filters Sold and Replaced
Thank you to our valued customers for 16+ years in business. RTF is a trusted retailer for leading brands in the indoor air filtration industry. We strive to provide the best service and air filtration products for our valued customers.
Custom Size Replacement Air Filters
A well-fit air filter not only improves air quality in your home or business, but it can also extend the life of your equipment. We enforce high standards, top craftsmanship, and consistent quality. A high-quality filter can keep you and your family breathing cleaner, healthier indoor air.
Compatible with Furnace, AC and HVAC Systems
The terms furnace filter and air conditioner (AC) filter. Are there really two different filters for the heating, ventilation, and air conditioning (HVAC) system in your home, or are they referring to the same filter? The answer—they are the same! Often times it depends on what part of the county you are in for the term you hear more often.
Don't Let Anything Past Your Filter
Airflow will always take the path of least resistance, this holds true with the air in an HVAC system in homes and businesses. Simply put air is lazy so it wants to find the easiest way out. If you have gaps between your filter and the storage rack in your system even if minor you can bet that is where the air wants to go. This allows unfiltered air to make it back into your home or business, and since that unfiltered air is also traveling through your HAVC system it could lead to costly repairs.
No Worry Filter Fit Guarantee
At RememberTheFilter.com, we want to make you happy. That’s why we work hard to ensure you’re always 100% completely satisfied with your purchase. And why we have not just one but two guarantees to make sure if you – or we – make a mistake on an order, we’ll do everything possible to make it right!
Improve Energy Efficiency
Save on energy costs and maintenance fees. Replacing your air filters can also improve the lifespan of your HVAC system. Quality filters will capture particles from the air you breathe but also allow air to travel freely through the filter reducing operating costs.
Frequently Asked Questions
Please enter the exact filter size you need your custom filters to be made in 1/8" increments.
Example: 14-3/8 x 26-1/2 x 1
Increments accepted: 1/8, 1/4, 3/8, 1/2, 5/8, 3/4, 7/8, 1.
- 1/8 = .125
- 1/4 = .25
- 3/8 = .375
- 1/2 = .5
- 5/8 = .625
- 3/4 = .75
- 7/8 = .875
Minimum Size: 6" x 6" - Maximum Size: 25" x 30"
If you need a larger filter size let us know. We can make larger filters but will need to quote based on your filter size.
Contact support if you need a larger size or assistance.
Furnace, AC and HVAC filters are most often measured in inches. A nominal measurement would be a rounded number like 20x25x1, rounded up to the nearest inch. These filters if measured with a tape measure would likely be closer to 19 ½" x 24 ½" x ¾" which would be the actual true exact size. When ordering custom filters enter the actual true exact size you need your filters to be made.
Choosing the correctly sized air filter is important in order to keep air clean in your home. An improperly sized filter may have limited performance. Determining the proper air filter size can be confusing, since filter packages generally display two sets of dimensions. It is important to understand that these dimension sets are the nominal and actual dimensions of the filter, and differences between the two.
Depending on the filter model most 1" depth filters are going to have an actual depth between 3/4"-7/8".
For 2" filters the depth will be 1-5/8". Not all filter models are available in 2" depth. If the 2" option is available there will be a dropdown to select the depth. Otherwise filters will be made in 1" depth.
If you have any questions or concerns please let us know.
We get it. Measuring your own HVAC system for custom furnace and AC filters can seem a little scary. But fear not! The RememberTheFilter.com team is here to help you succeed! And if you make a mistake, no worries. With our Filter Fit Guarantee, you can’t go wrong!
At RememberTheFilter.com, we want to make you happy. That’s why we work hard to ensure you’re always 100% completely satisfied with your purchase so you never have to return it. However, in the unlikely event you need to, we’re ready to make it right! For more information on the return policy please visit the "Returns" page.
Minimum Efficiency Reporting Value (MERV) is a filter industry standard system that rates the overall effectiveness of air filters. Higher value MERV rating equates to finer filtration, meaning fewer dust particles and other airborne contaminants can pass through the filter. Other common ratings found within certain brands and stores includes FPR, MPR. They all follow the same basic principal, the higher the number the greater overall effectiveness of the air filter.
Most often there will be an arrow on the side of the filter which will indicate which way to insert the filter. The arrow will show which direction the air is to travel through the filter. If there is no arrow the filter can be installed in both directions.
Remember your filter is designed to protect your system first and foremost. Air should be traveling through the filter before your blower and system.
Please allow 5-10 business days for most custom filter orders to be manufactured. Once your filters are made it will take 1-5 business days for your filters to be delivered by our shipping partners. All filter orders ship for free out of the production plant nearest you; FL, NY, OK, IL, CA, NC or WA. Current production times can be found on our lead time page. Delivery details will be provided in your confirmation email.
All filter orders ship for free in the domestic US. Free shipping is available for addresses inside the 48 contiguous states only. Give us a call at 866-469-8556 or send customer service a quick email if you have questions.
