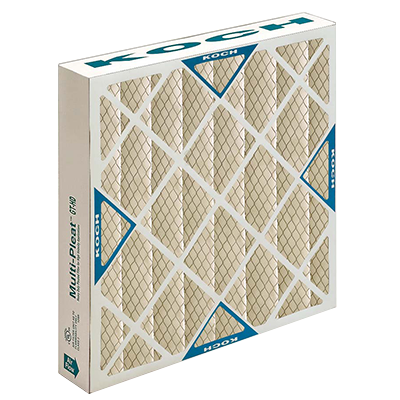

The Koch Multi-Pleat GT-HD1 (part number 102-725-090, 23-1/4 x 23-1/4 x 4) is a heavy-duty pleated panel filter at MERV 8, engineered specifically for gas turbine applications where filter durability and extended service life are mission-critical.
The GT-HD1 is built around the heaviest construction in Koch’s panel line. The frame is 0.056″ thick beverage board — roughly twice the thickness of standard pleated panel frames — with wet-strength treatment for high-moisture installations. The 100% synthetic high-loft polyester media is bonded to a rust-resistant heavy-duty expanded metal backing that holds pleat geometry through the entire service life. Upstream support fingers add stability under high-volume continuous airflow. The result is a filter engineered to survive conditions that would shred conventional pleated panels.
Pneumafil OEM cross-reference: The 4″ exact-depth size (23-1/4 x 23-1/4 x 4) is built to replace the Pneumafil OEM dimensional specification, making this a direct drop-in for installations originally specified for Pneumafil filters.
When Multi-Pleat GT-HD1 is specified
-
Gas turbine inlet filtration — the primary design target; built for the dust loads, airflow volumes, and continuous duty of turbine inlet stages
-
Generator and large compressor inlet stages — same heavy-duty profile applies to any large rotating-equipment inlet application
-
Industrial pre-filter applications — longer service life than standard pleated panels in dust-loaded, continuous-duty environments
-
High-moisture industrial sites — .056″ wet-strength frame holds up where standard frames would degrade or warp
-
Aggressive maintenance environments — the heavy expanded metal backing and reinforced frame survive rough handling during changeouts
Design and construction
-
Media: 100% synthetic high-loft polyester (HD1 standard media)
-
Backing: Rust-resistant heavy-duty expanded metal
-
Frame: 0.056″ heavy wet-strength beverage board (twice the thickness of standard pleated panels)
-
Support: Heavy-duty galvanized wire support with upstream support fingers
-
Configuration: Heavy-duty pleated panel
-
Efficiency rating: MERV 8 per ASHRAE Test Standard 52.2
-
Listings: UL Classified per UL Standard 900
-
Pack size: 5 filters per case
What MERV 8 captures
Captures dust mite debris, pollen, mold spores, pet dander, and most household and office airborne dust. The standard residential and commercial efficiency for everyday indoor air quality, balancing capture performance with airflow.
HD1 vs. HD3 media options
Koch offers the GT-HD line in two media alternatives. The HD1 media (this filter) is the standard option, balancing efficiency, low resistance to airflow, and high dust-holding capacity. The HD3 upgrade option is engineered for applications where even longer filter life and higher efficiencies are required. HD3 is not stocked on this listing — contact us for pricing if your application requires the upgrade media.
Multi-Pleat GT vs. GT-HD: which to choose
Both filters share the gas turbine heritage and MERV 8 rating, but they target different operating conditions. The Multi-Pleat GT uses standard beverage board frame and synthetic media — the right choice for general heavy-duty commercial HVAC and lighter-duty turbine applications. The GT-HD1 (this filter) doubles the frame thickness, switches to high-loft polyester media on an expanded metal backing, and adds upstream support fingers — the right choice for demanding continuous-duty turbine inlets, high-moisture sites, and applications where maximum filter longevity and structural integrity matter more than upfront cost.
Important sizing and ordering notes
-
This is a non-standard nominal size built specifically for gas turbine OEM specifications. Confirm your housing dimensions before ordering.
-
Full carton quantities only. Per Koch’s shipping policy, GT-HD ships in full carton quantities.
-
If you need a 24x24x4 nominal size GT-HD1 element for an existing reusable frame, see the GT-HD1 Insert (102-727-031) listing — that is the media and wire element only, with no frame.
Trademark notice
Pneumafil® is a trademark or registered trademark of its respective company. References to brand names and dimensional specifications are for product identification only and are not intended to imply any affiliation, endorsement, or sponsorship.
