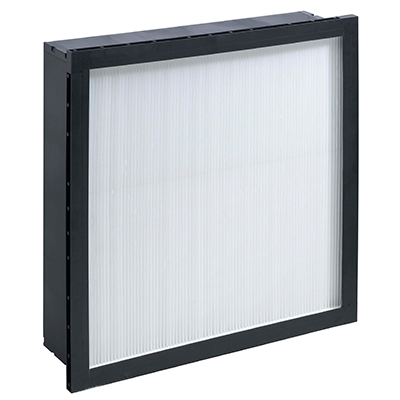

This 20″ × 24″ × 6″ Koch MicroMAX PL6 filter (part number 120-26-2024) delivers MERV 14 filtration in a 6-inch-deep extended-surface minipleat design with an all-plastic frame and single peripheral header for side-access housings.
The PL6 occupies the sweet spot in the MicroMAX line: deeper than the 4″ standard MicroMAX for more dust-holding capacity and longer service life, yet half the depth and a fraction of the weight of traditional 12″ rigid cell filters. The 100% high-impact polystyrene frame is incinerable for clean disposal, and the lightweight construction is designed to drop directly into side-access housings or front-load holding frames as a replacement for heavier 12″ competitive high-efficiency filters and bag filters.
When MicroMAX PL6 is specified
-
6-inch filter slots and AHU housings — built-for-purpose form factor for systems sized to 6″ depth
-
Replacing 12″ rigid cell or bag filters — reduces filter weight, freight cost, and storage footprint without giving up media area
-
Side-access commercial AHUs — the 13/16″ peripheral header is built specifically for side-loaded installations
-
Disposal-sensitive facilities — 100% polystyrene frame is fully incinerable, no metal separation required
-
Variable-air-volume (VAV) commercial HVAC — rigid construction maintains performance under airflow swings; rated to 125% of face velocity
-
Hospitals, pharmaceutical, and lab facilities — proven media reliability in critical IAQ environments; antimicrobial-treated media available as a factory option
Design and construction
-
Media: Micro fiberglass paper, dual-density (coarse upstream, fine downstream)
-
Binder: Water-repellent formulation
-
Pleat separators: Thermoplastic glue beads (consistent pleat spacing, aerodynamic airflow)
-
Frame: 100% high-impact polystyrene (lightweight, rigid, incinerable)
-
Media-pack-to-frame seal: Solid polyurethane (eliminates bypass)
-
Header: Single 13/16″ peripheral header on the air-entering side
-
Configuration: Extended-surface minipleat, 6″ depth
-
Efficiency rating: MERV 14 per ASHRAE 52.2-2007
-
Maximum operating temperature: 175°F / 82°C
-
Maximum face velocity: 125% of rated
-
Recommended final pressure drop: 1.5″ w.g.
-
Maximum burst pressure: 10.0″ w.g.
-
Listings: UL Classified per UL Standard 900
-
Pleat orientation: Width and height are interchangeable; pleats can be installed in either direction
-
Pack size: 2 filters per case
What MERV 14 captures
Very high-efficiency filtration capturing most sub-micron particles including smoke, bacteria, and many viruses. Specified in hospitals, surgical suites, pharmaceutical, and demanding cleanroom pre-filter applications.
MicroMAX PL6 vs. standard MicroMAX vs. DuraMAX
The standard MicroMAX (4″) is the most compact option — best for shallow filter slots and weight-sensitive installations. The MicroMAX PL6 (6″) splits the difference: more dust capacity than the 4″ line, much lighter than 12″ rigid cells, and the all-plastic incinerable frame for clean disposal. The DuraMAX line (12″) is the longest-life, lowest-pressure-drop option — the right choice when you have the housing depth and want maximum service hours between changeouts. Match the depth to your housing first, then optimize for service life or weight.
Important sizing and ordering notes
-
Special sizes are not available. The MicroMAX PL6 ships only in the standard sizes listed.
-
Full carton quantities only. Per Koch’s shipping policy, MicroMAX PL6 ships in full carton quantities to ensure safety in transit.
-
Pleats install in either direction. Width and height are interchangeable on the media pack; the peripheral header determines the air-entering face.
Compatibility
The MicroMAX PL6 is interchangeable with most competitive 6″-deep single-header minipleat filters in the same nominal size. It also serves as a direct lightweight upgrade for facilities replacing legacy 12″ rigid cells or bag filters in 6″-capable housings — same media area, dramatically less weight and freight.
