Actual filter size may differ from size shown in image.

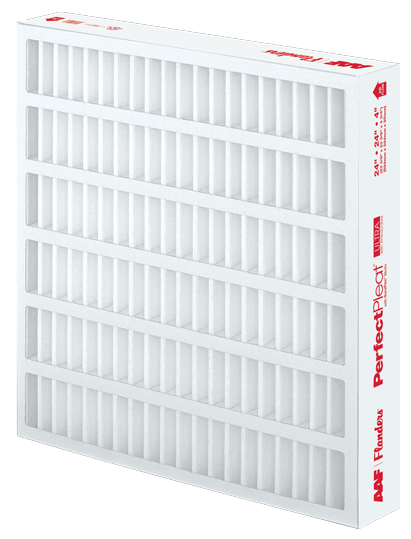

The PerfectPleat ULTRA filter is designed to consistently increase efficiency throughout the service life of the filter. The PerfectPleat ULTRA filter has approximately 25% more media than our standard capacity filter, and also incorporates an antimicrobial. The antimicrobial is applied to the media to preserve the integrity of the media throughout the filter’s useful life by inhibiting microbial growth. PerfectPleat ULTRA filters have an initial MERV 8 rating respectively, but the efficiency increases significantly when dust holding begins. PerfectPleat ULTRA filters have distinctive self-supporting characteristics that allow a pleating pattern, which promotes airflow and maximizes dust holding capacity (DHC). The PerfectPleat ULTRA filter is ideal for applications where pleated filters are currently in use, and higher efficiencies are desired or required. It is also suited to high moisture conditions where bacterial growth may be likely to occur on air filters.
Superior Design and Construction
The perimeter frame is constructed from the highest wet-strength 28 pt. beverage carrier board, securely bonded to the media pack. The 1″ model employs three supporting straps on the air-entering and air-leaving sides of the filter to control pleat spacing and support the media pack in the perimeter frame.
Support straps on the air-entering side are used in combination with a triple layer tri-ply support bar on the air-leaving side of the 2″ model to provide additional strength. The support straps and tri-ply support bar ensure integrity against turbulent airflow. The 2″ filter resists crushing and abuse, and provides excellent lateral stability for installation in side-access systems.
The 4″ model utilizes a two-piece die-cut frame with integral pleat spacers on the air-leaving side. Pleat spacing is controlled by straps bonded to the air-entering side and the multiple rows of pleat spacers on the air-leaving side. The pleat spacers also ensure that the pleats remain open during use, maximizing filter life.
DuraFlex® Media – Patented Media Design
Uniform size virgin fibers are assembled in closely controlled blends to create a media that is both self-supporting and consistent in performance. When pleated, DuraFlex media will hold its shape without the wire support characteristic of conventional pleated filters. That means no potential for the formation of rust, and safer handling. With the superior resiliency of DuraFlex media and no need for wire support, PerfectPleat ULTRA filters can sustain significant abuse and maintain their shape and pleat spacing. The absence of wire also makes the filter totally incinerable, which can simplify disposal.
- Incorporates antimicrobial to support optimal Indoor Air Quality (IAQ)
- Low initial resistance
- Mechanical efficiency – does not rely on electret charge technology
- Self-supporting DuraFlex® media made from virgin fiber; no wire support needed
- Consistent media with controlled fiber size and blend
- Environmentally friendly – no metal, fully incinerable
- Nominal Size: 20 x 24 x 2
- Actual Size: 19-1/2 x 23-1/2 x 1-3/4
- Quantity: 12 filters
- MERV 8
