AAF Flanders PREpleat LPD (Low Pressure Drop) SC (Standard Capacity) filter is the lowest initial resistance standard capacity MERV 8 pleated filter in the industry. Combined with its high DHC (Dust Holding Capacity), the PREpleat LPD SC filter provides an extended life cycle and energy efficient performance.
Superior Design and Construction
Media: 100% synthetic non-woven, proprietary media that can be recycled. Engineered with a gradient density composition that achieves a MERV 8 rating using the mechanical method of particle capture. Media does not rely on an electrostatic charge to capture particulate, since electrostatic charge dissipates over time.
Media Support: Expanded metal is continuously laminated on the air leaving side to provide pleat stability during operation. Pleat shape is maintained allowing full media utilization which maximized DHC.
Pleat Design: V-Pleat design aids in pressure drop while reducing energy cost. Design allows for maximum airflow and DHC during the life of the filter.
Frame: Heavy-duty, two piece, moisture-resistant frame with diagonal support members. Frame is bonded to the media at all points of contact for unsurpassed frame strength. Interlocking corners and positive media-to-frame seal reduce the possibility of air bypass.
Operating Temperature Limits: Maximum operating temperature is 180°F (82°C).
The PREpleat LPD SC standard capacity pleated panel filters are suitable as prefilters but are best suited for residential, heavy duty, commercial, industrial, pharmaceutical, as well as other industrial applications where high dust holding is required. The PREpleat LPD SC filters are suitable for installation in front access holding frames and side access housings.
- Low resistance MERV 8 media offering higher Dust Holding Capacity (DHC) than competitive capacity filters
- Ecologically friendly frame components made from recyclable materials
- Expanded metal grid maintains pleat shape during operation for full media utilization and high DHC
- Diagonal support members and wire-backed media contribute to overall strength of construction
- Filter media pack is bonded to the frame at all points of contact to eliminate air bypass

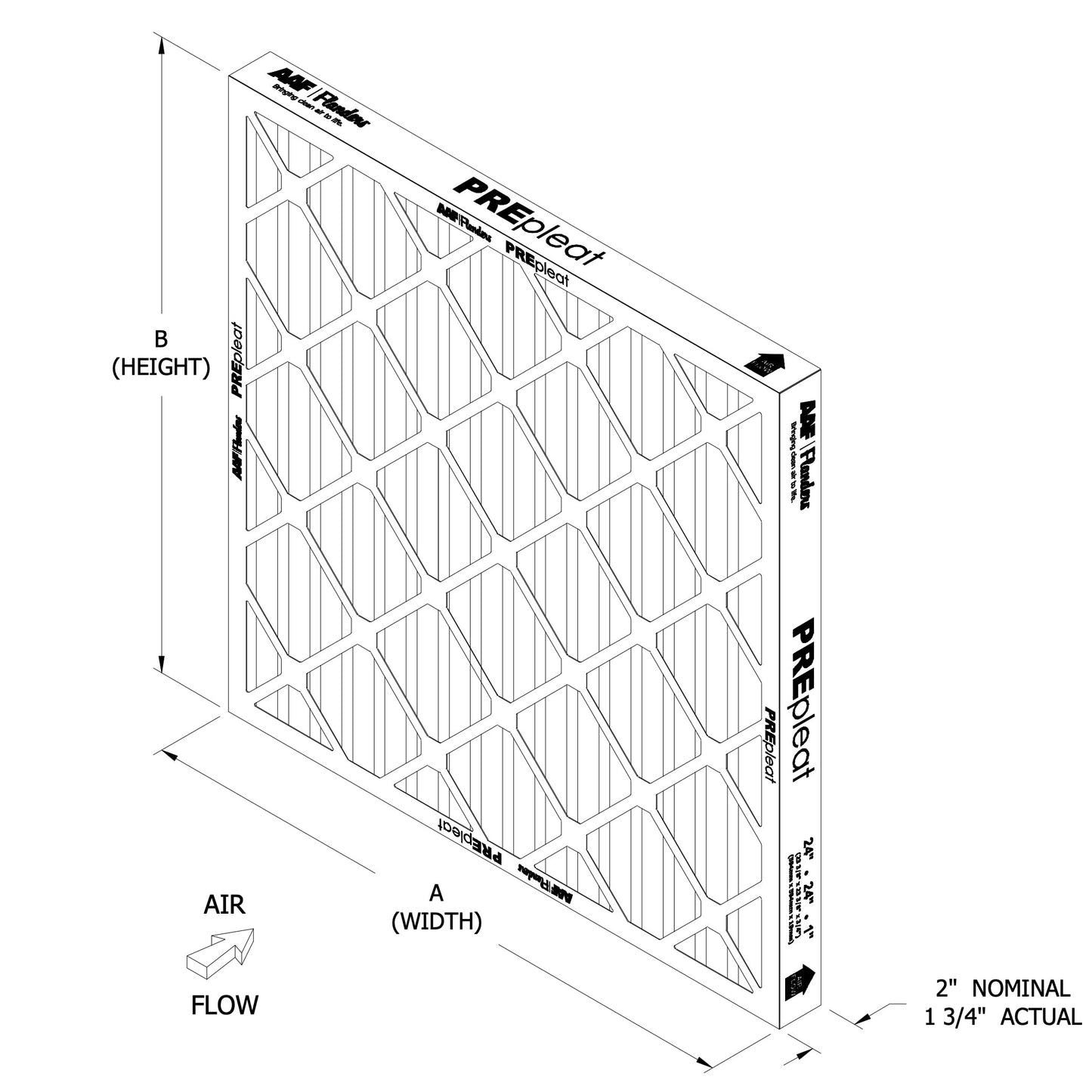

- Nominal Size: 12 x 24 x 2
- Actual Size: 11-1/2 x 23-1/2 x 1-3/4
- Quantity: 12 Filters
- MERV 8 Rating
Payment & Security
Filter Fit Guarantee™
At RememberTheFilter.com, we want to make you happy. That’s why we work hard to ensure you’re always 100% completely satisfied with your purchase. And why we have not just one but two guarantees to make sure if you – or we – make a mistake on an order, we’ll do everything possible to make it right!
GUARANTEED TO FIT – OR WE FIX IT FOR FREE!
We get it. Measuring your own HVAC system for custom furnace and AC filters can seem a little scary. But fear not! The RememberTheFilter.com team is here to help you succeed! And if you make a mistake, no worries. With our Filter Fit Guarantee, you can’t go wrong!
Here’s how it works. If you have an “oops!” moment measuring your filters and the new one doesn’t fit, simply call us at 866-469-8556 or send an email and we’ll remake that exact same product for you for free within 30 days of the date your order was delivered.* You just cover a $20 replacement shipping fee, and we’ll get your new remake right out to you.
See fine print below.
Tips for Measuring Filters
To make sure your custom filters fit right the first time, here are some tips from the RememberTheFilter.com filter measuring experts:
- Never just assume what is printed on your old filter is the exact size. Measure your existing filter down to 1/8" for both the length and width and use those measurements for your new ones.
- Check out our "How to measure your air filter" page for more information on getting the perfect fit.
Still a bit nervous? Start by ordering just one case of filters if you need multiple sizes before ordering for your entire system. That way you can see how quickly your custom filters are delivered (for FREE, BTW) and how perfect they fit, so you can order more with confidence!
If you have any questions about measuring your filters before placing your order, call our Customer Care Team. We’re here to help you get the perfect fit, every time!
* The only time you may incur a remake charge is if there is a difference in price between the original product and the remake.
90-DAY SATISFACTION GUARANTEE
If there is a defect in a product’s material, workmanship or it was not made to the same size and specifications you ordered, we promise to resolve the issue at no cost to you for up to 90 days from the date of purchase. We even pay for shipping! And if you’re not happy with your custom filters for any other reason within the first 90 days -- you don’t like the MERV rating, you need a different style (basic or pleated), etc. – we’ll remake that same product in the same size for the same great discount price you paid, plus give you an additional 10% off. Please see our Returns page for more details.
The RememberTheFilter.com Filter Fit Guarantee gives you the confidence to measure your own custom filters without worrying about making a mistake. If you do have a measuring mishap, we will remake that product to your corrected size specifications at no cost to you, other than a small $15 shipping fee. The only time you may incur a remake charge is if there is a difference in price between the original product and the remake.
The Filter Fit Guarantee applies only to necessary remakes of a product due to customer error in measurements (i.e., incorrect/wrong size filter measurements provided by customer on order) resulting in product that is made to wrong size.
Product remakes will be made with customer’s corrected measurements applied to the original product ordered only. Product(s) will be remade in same style, rating, etc., per original order.
Requests for product remakes under guarantee must be made within 30 days of delivery date of original product to customer.
Customer must provide RememberTheFilter.com with photo showing how filter does not fit system when requesting remake under this guarantee.
Remakes under this guarantee are limited to two (2) cases per order and a total of four (4) cases per household per customer lifetime whether for same or different product(s).
Any mis-measure remakes after the first four will be made at customer cost for the price of the original order, including any discounts, plus an additional 10% off.
Any product ordered outside recommended product sizes per specifications on our product pages is not covered. Bulk orders of 5 or more of the same product are not covered under this guarantee. Guarantee excludes HEPA filters. No cash refunds are available under this guarantee.
TIPS TO SEARCH FOR YOUR FILTER SIZE
When using our search option to locate your filter size especially for Exact Filters® enter the exact size needed in the format shown here.
No spaces, fractions only 1/8, 1/4, 3/8, 1/2, 5/8, 3/4, 7/8.
