PerfectPleat HC MERV 8 | AAF Flanders High-Capacity Pleated

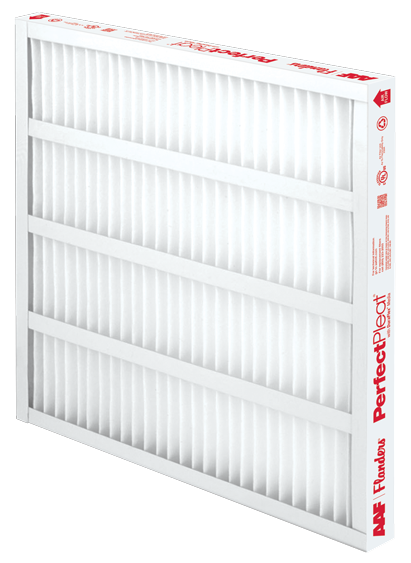

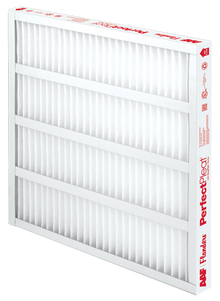

AAF Flanders PerfectPleat High Capacity MERV 8

The PerfectPleat HC is AAF Flanders' high-capacity 2″ and 4″ MERV 8 pleated commercial filter — built around the signature self-supported pleat pack with no metal backing. The high-capacity construction delivers 2–3× the dust-holding capacity of standard 1″ pleats while maintaining low pressure drop, so facilities running RTUs and AHUs get significantly extended service intervals at the same MERV 8 baseline efficiency.

Specifications

• MERV 8 efficiency, tested per ASHRAE 52.2
• 2″ and 4″ depths — drop-in replacement for most commercial racks
• Self-supported pleat pack — no expanded metal grid, lighter weight, fully incinerable
• Beverage-board frame with moisture-resistant coating
• UL 900 Classified

Why HC Over Standard Capacity

Standard-capacity 1″ pleats have a finite media area. In high-airflow commercial applications, they load up faster than monthly maintenance schedules can accommodate. The HC version's deeper media pack effectively triples the dust-holding capacity at the same MERV 8 efficiency — meaning quarterly or semi-annual change-outs instead of monthly.

If you need higher efficiency, see PREpleat M11 and M13. For the standard-capacity version, see PerfectPleat SC MERV 8. Volume pricing — call 1-866-469-8556 or request a quote.
