AstroCel I HEPA Filter 17A74J1T2H0 24x48x5-7/8

SKU 567-743-008
Sold out / Discontinued
Original price $ 0.00 - Original price $ 0.00
Original price
$ 0.00
$ 0.00 - $ 0.00
Current price $ 0.00
Availability:
Out of stock
   🗓️   Delivery:

Filter Fit Guarantee

We ensure satisfaction with every purchase through our Filter Fit and Satisfaction Guarantees. Learn More

Lowest Price

Find a better price? We’ll beat it by 5%. See our Price Match Policy.

Get a personalized quote or assistance finding the perfect size:

Please note: The image shown may not reflect the actual size of the filter. Refer to product specifications for accurate dimensions.

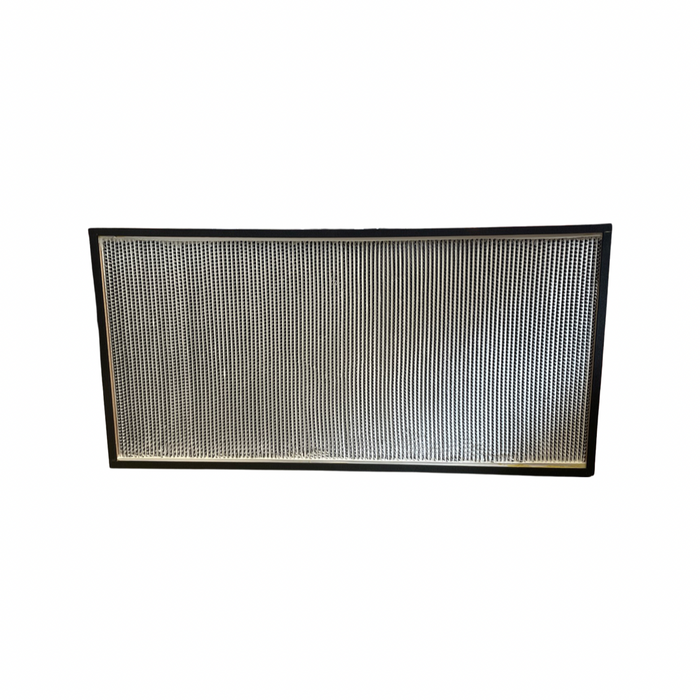

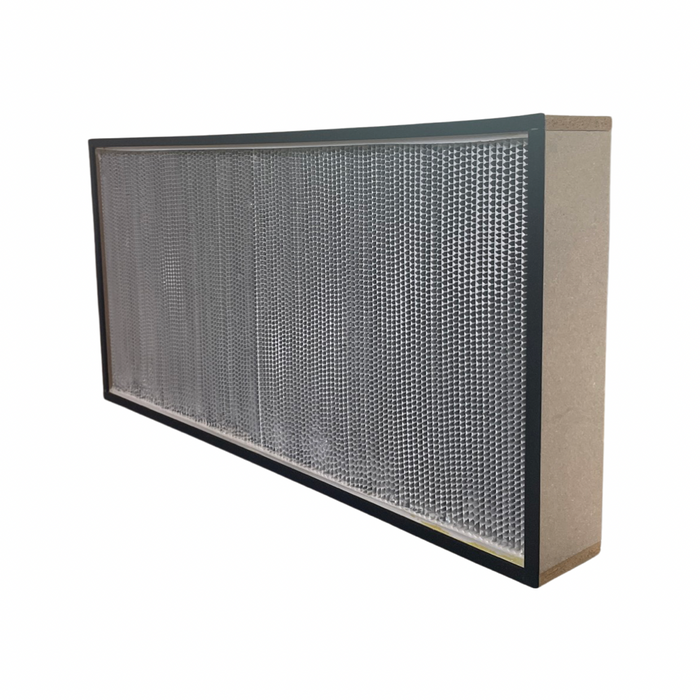

AstroCel I HEPA Filter 17A74J1T2H0 24x48x5-7/8

We are no longer able to source this filter from AAF Flanders. However, we have a recommended replacement from KOCH Filters that meets all the same specifications and dimensions as your previous filter.

Recommended Replacement: KOCH BioMAX 24x48x5-7/8" 99.97% HC HEPA Wood Frame w/ Gasket (Downstream)

View Replacement Filter

AstroCel I 17A74J1T2H0 High Efficiency Particulate Air (HEPA) filters are the most efficient air filters commercially available. They have broad application in cleanrooms and other areas requiring the very highest levels of contamination control.

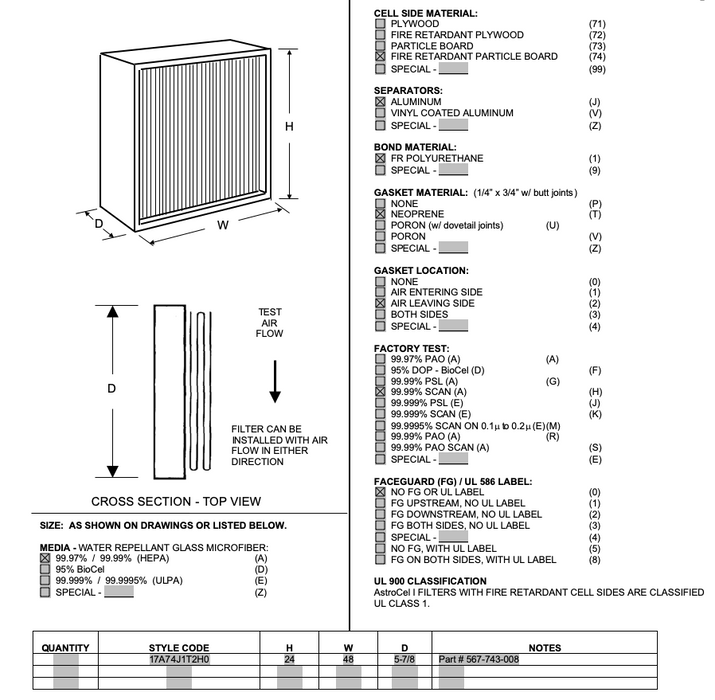

HEPA Filter Build Specifications

  • Fire Retardant Particle Board Frame
  • Aluminum Separators
  • FR Polyurethane Bond Material
  • Neoprene Gasket
  • Air Leaving Side Gasket Location
  • 99.99% Scan Factory Test
  • No Faceguard or UL label
  • Height 24", Width 48", Depth 5-7/8"

Performance & Applications

The AstroCel I filter is available in a variety of efficiencies, including 99.97%, 99.99% and 99.999% on 0.3 micrometer particles, and is also available with laser scanned factory certification.

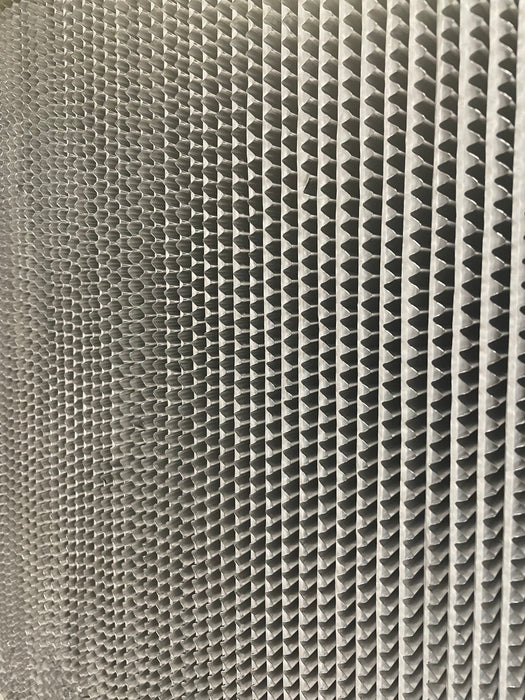

AstroCel I HEPA filters are used primarily in cleanrooms and clean zones, which require the very highest levels of contamination control. The filter consists of water-proofed, fire-retardant fiberglass media formed into a series of pleats. Corrugated sheets of aluminum separate the pleats to permit maximum usage at minimum resistance. Gasketing is available on the upstream, downstream, or both faces. Extractor clips are available for gel seal Astrocel I HEPA filters, for Bag In/Bag Out housings.

Energy Saving Design

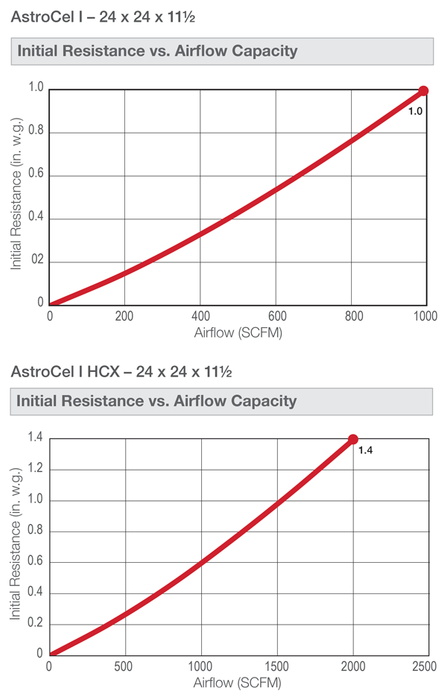

The pleat openings and exits of the Astrocel I filter deliver low entrance and exit losses. This, combined with less restriction from separator material and better media utilization, delivers a low pressure drop. The high capacity (HCX) model utilizes tapered separators, which allow a doubling of airflow with only a 40% increase in resistance. The lower operating resistance reduces operating costs and saves energy.

Antimicrobial Treated Media

Optional antimicrobial traps and concentrates particulate air contaminants to improve Indoor Air Quality (IAQ) while preserving the integrity of the media.

Important Notes

This filter is considered a custom product. Orders must be cancelled within 24 hours. No refunds or exchanges. Our quotes from AAF Flanders are only valid for 30 days. We reserve the right to notify you of any price changes after an order is placed. If there has been a price adjustment in the quote you will have the option to cancel the order.

Lead Times

Since this is a custom made HEPA filter lead times can range from 4-8 weeks for production and testing. Once the order is confirmed with the plant it will be scheduled for an estimated completion date that we will monitor.
